BrakesABS modulator schematic

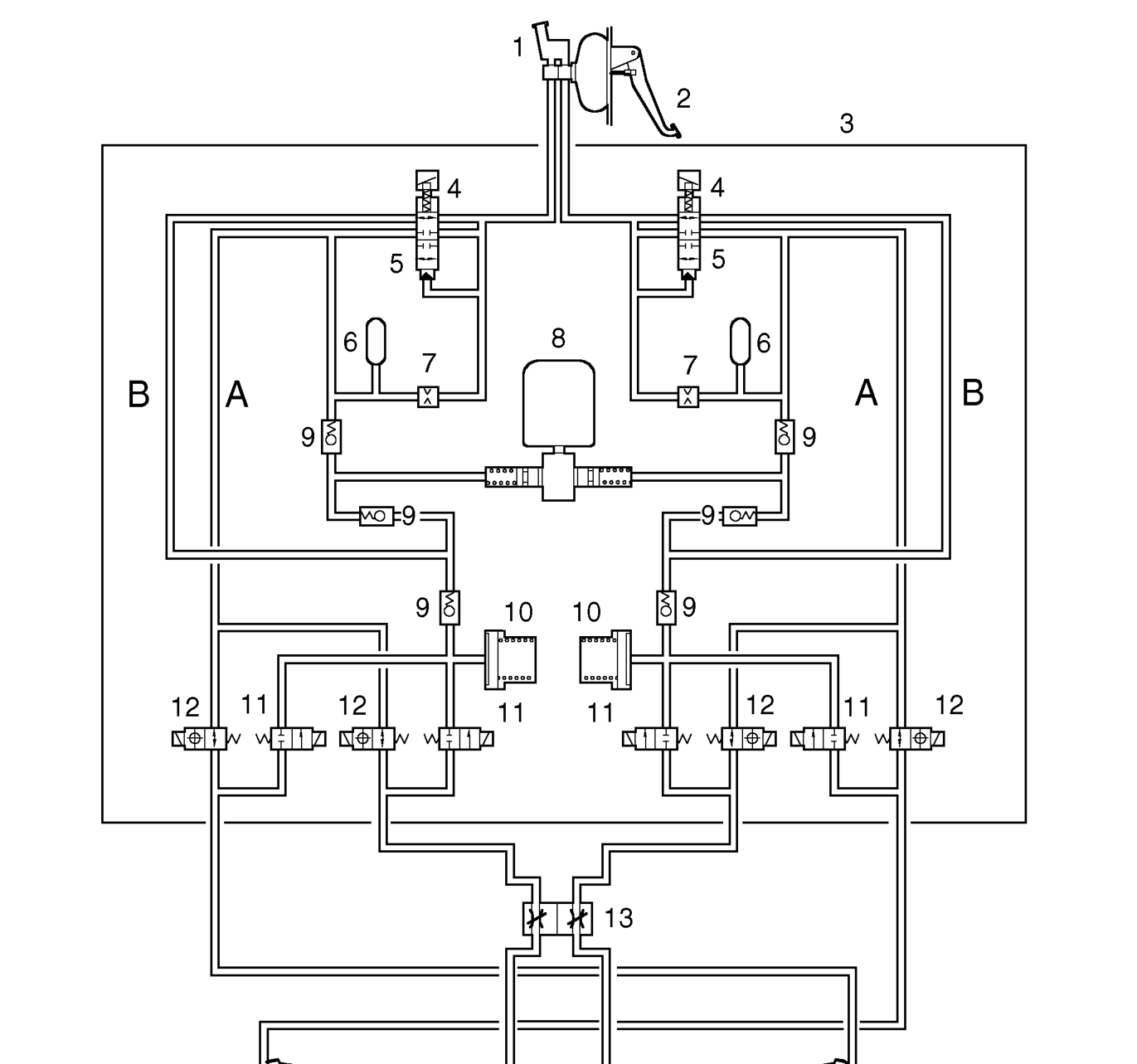

ABS modulator schematic

1. Master cylinder assembly
2. Brake pedal
3. ABS modulator
4. Shuttle valve switch
5. Shuttle valve
6. Damper chamber
7. Restrictor
8. Return pump
9. Check valve
10. Expansion chamber
11. Outlet solenoid valve
12. Inlet solenoid valve
13. Pressure conscious reducing valve
14. Front brake
15. Rear brake
