BrakesFront brake components

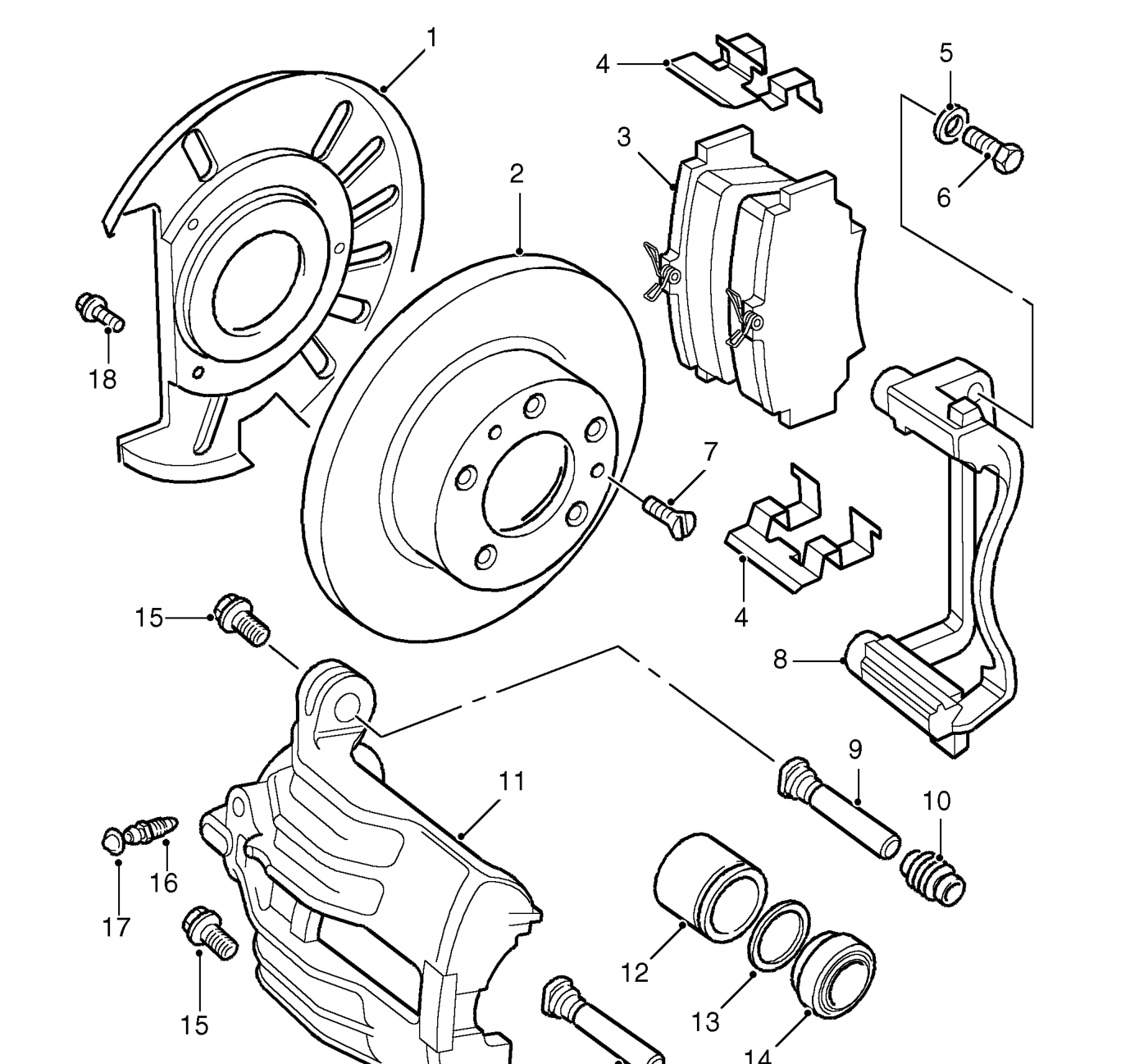

Front brake components

Front brake components
  1. Mudshield
  2. Brake disc
  3. Brake pads
  4. Pad retainer
  5. Washer
  6. Caliper fixing bolt
  7. Brake disc fixing screw
  8. Caliper carrier
  9. Guide pin
  10. Guide pin dust cover
  11. Caliper body
  12. Piston
  13. Piston seal
  14. Piston dust cover
  15. Guide pin bolt
  16. Bleed screw
  17. Bleed screw cap
  18. Mudshield fixing bolt
