Sectioned view of master cylinder assembly - non ABS (Brakes)

Make

Land Rover

Model

Freelander Workshop Manual

Year

1998–2000

Section

Description and operation › Sectioned view of master cylinder assembly - non ABS

BrakesSectioned view of master cylinder assembly - non ABS

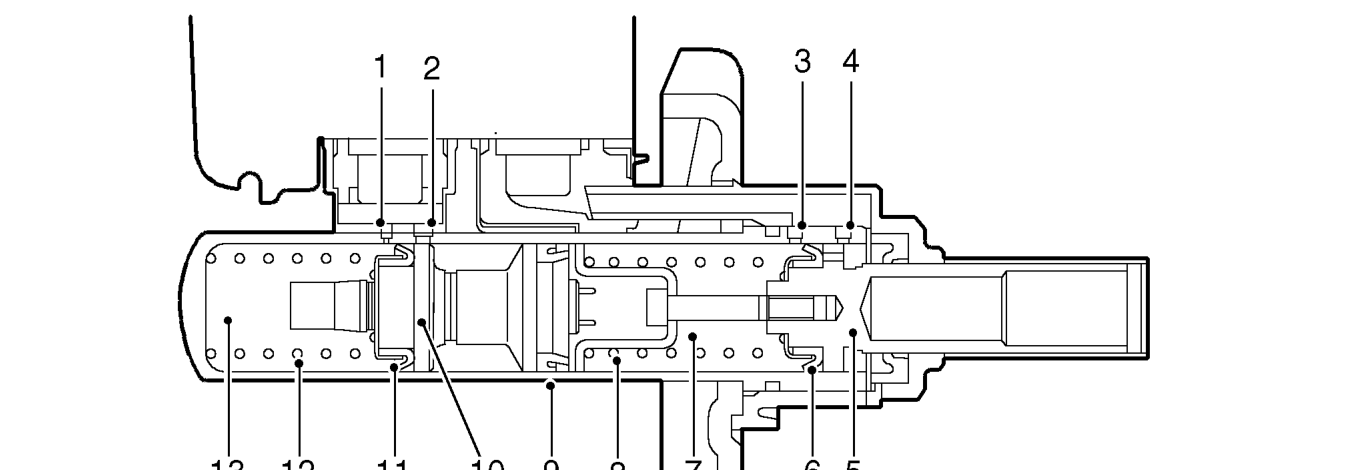

Sectioned view of master cylinder assembly - non ABS

1. Secondary cut-off hole
2. Secondary feed hole
3. Primary cut-off hole
4. Primary feed hole
5. Primary piston
6. Recuperating seal
7. Pressure chamber
8. Primary spring
9. Cylinder
10. Secondary piston
11. Recuperating seal
12. Secondary spring
13. Pressure chamber
