Land Rover Freelander Workshop Manual (1998-2000)22 · Brakes
22 · Brakes

Brakes (ABS ECU): Description and operation

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Description and operation › ABS ECU
BrakesABS ECU

ABS ECU

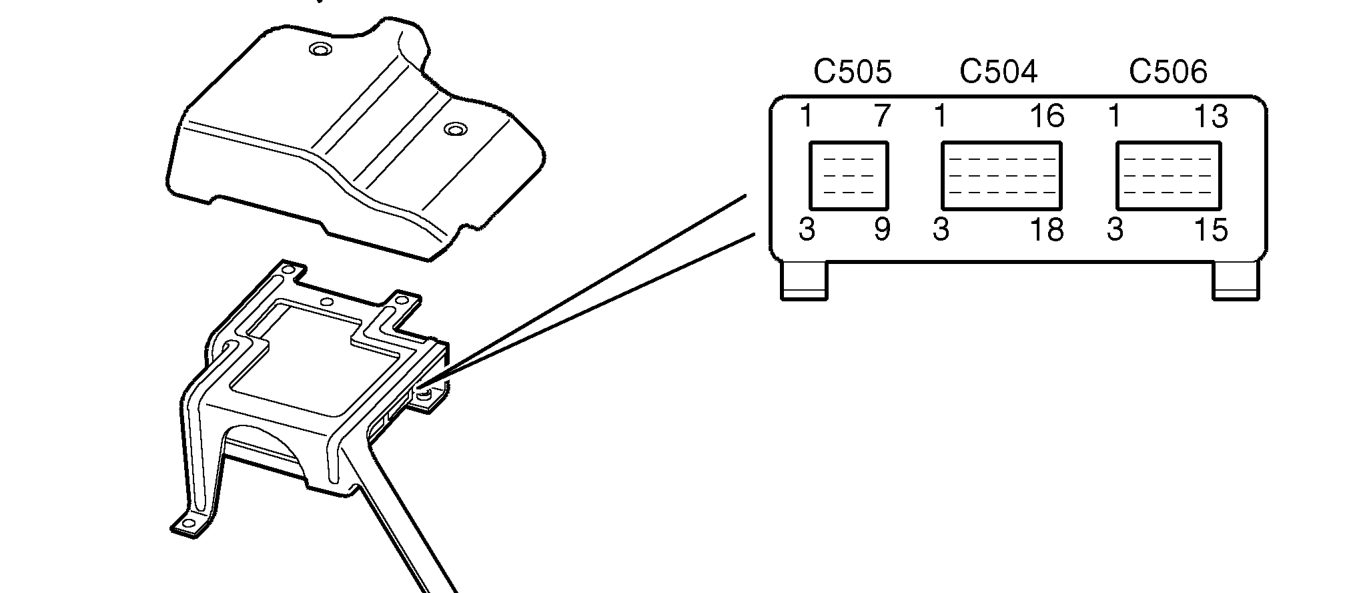

Abs ecu

ABS ECU connector pin-out details

Connector C504

  1. Battery power 8. Return pump monitor 15. Not used
  2. Ignition power 9. Not used
  3. Road speed 10. ECM input
  4. Not used 11. First gear selected
  5. ISO 9141 K line 12. Earth
  6. Not used 13. ETC warning lamp
  7. Reverse gear selected 14. HDC selected
  8. HDC fault warning lamp
  9. HDC information warning lamp
  10. ABS warning lamp

Connector C505

  1. Front LH ABS sensor 4. Front RH ABS sensor 7. Rear LH ABS sensor
  2. Front LH ABS sensor 5. Front RH ABS sensor 8. Rear LH ABS sensor
  3. Rear RH ABS sensor 6. Rear RH ABS sensor 9. Not used

Continued.....
