BrakesRear brake components

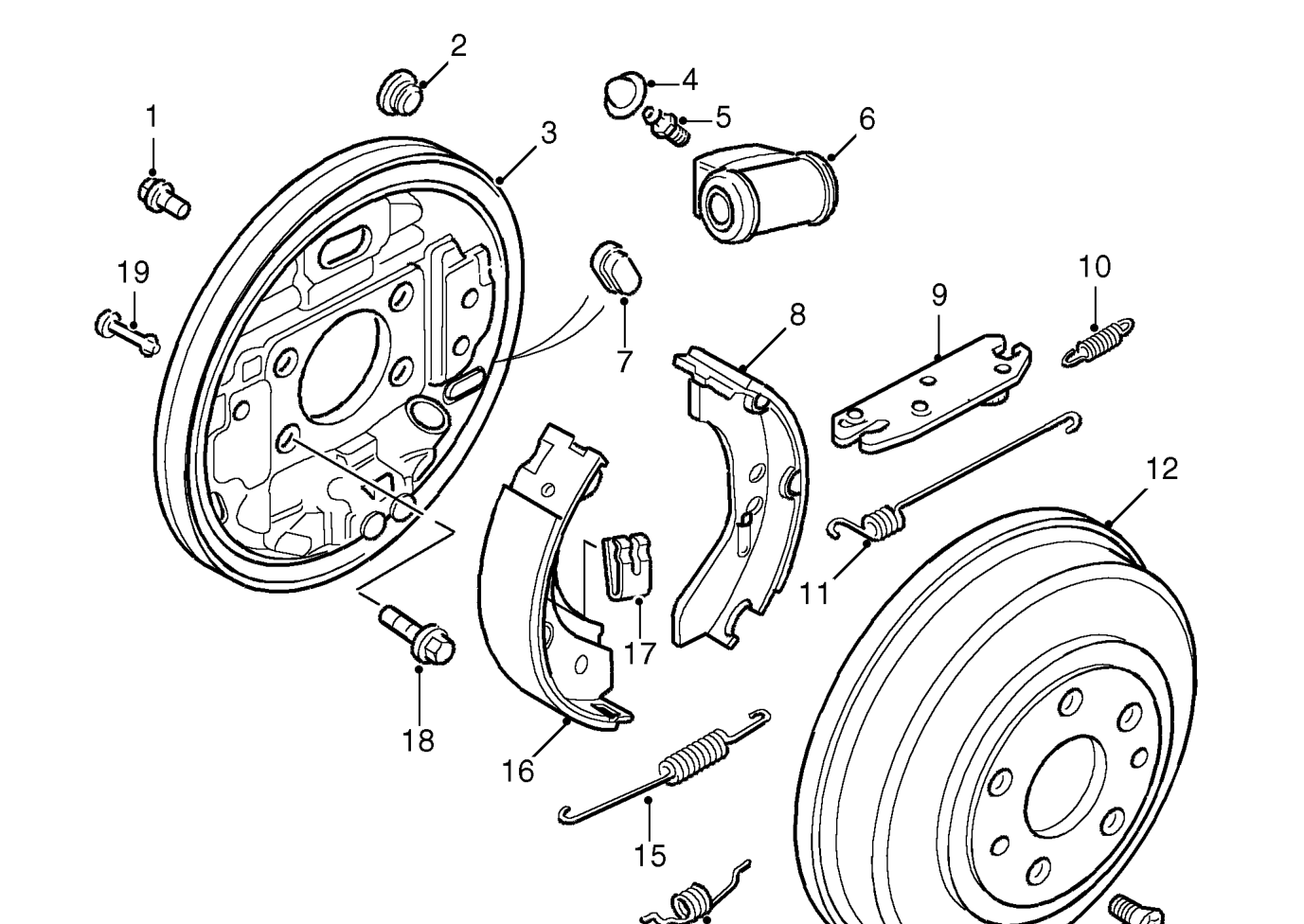

Rear brake components

1. Wheel cylinder fixing bolt
2. Blanking plug
3. Backplate
4. Bleed screw cap
5. Bleed screw
6. Wheel cylinder
7. Blanking plug
8. Leading brake shoe
9. Adjuster rod
10. Adjuster spring
11. Upper shoe return spring
12. Brake drum
13. Drum fixing screw
14. Bias spring
15. Lower shoe return spring
16. Trailing brake shoe
17. Shoe retaining pin spring clip
18. Backplate fixing bolt
19. Shoe retaining pin
