BrakesSectioned view of master cylinder assembly - ABS

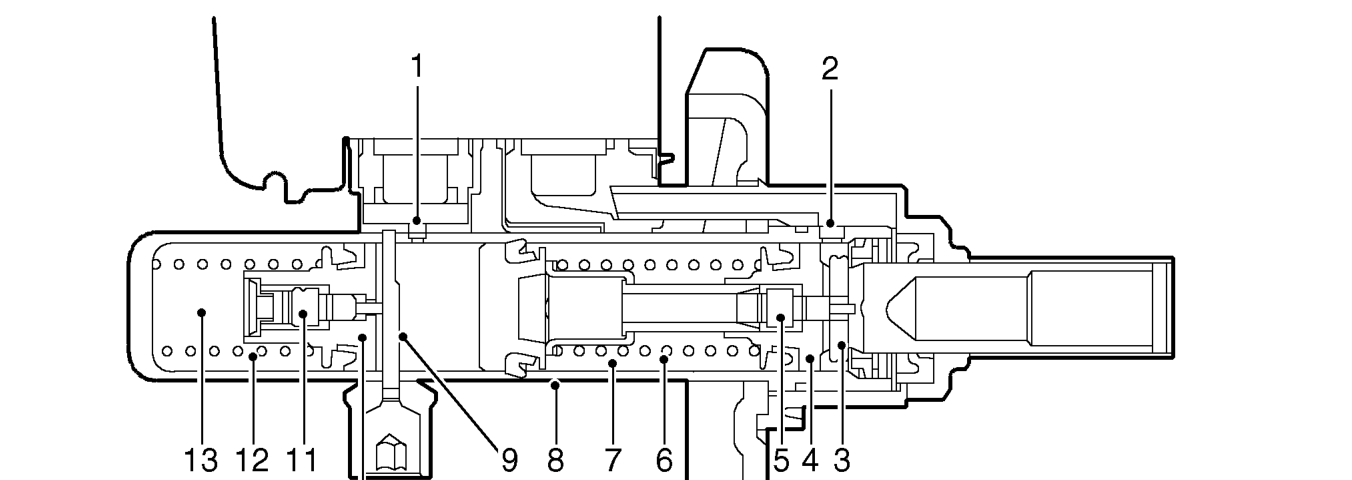

Sectioned view of master cylinder assembly - ABS

1. Secodary feed hole
2. Primary feed hole
3. Valve pin
4. Primary piston
5. Centre valve
6. Primary spring
7. Pressure chamber
8. Cylinder
9. Valve pin
10. Secondary piston
11. Centre valve
12. Secondary spring
13. Pressure chamber
