Land Rover Freelander Workshop Manual (1998-2000)22 · Brakes
22 · Brakes

Electronic control unit (ECU) - ABS

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Electronic control unit (ECU) - ABS
BrakesElectronic control unit (ECU) - ABS

ELECTRONIC CONTROL UNIT (ECU) - ABS

Service repair no - 70.65.01

Remove

  1. Slide RH front seat fully rearwards.

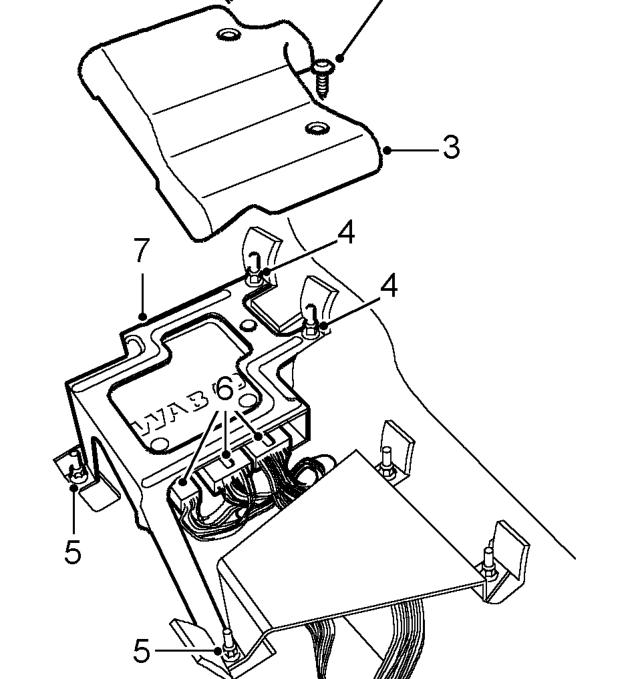

Electronic control unit (ecu) - abs – Slide RH front seat fully rearwards.
  1. Remove 2 Torx screws from ECU cover.
  2. Remove ECU cover.
  3. Remove 2 nuts from front of support bracket.
  4. Slide RH front seat fully forward and remove 2 nuts from rear of support bracket.
  5. Disconnect 3 multiplugs from ECU.
  6. Remove support bracket and ECU.

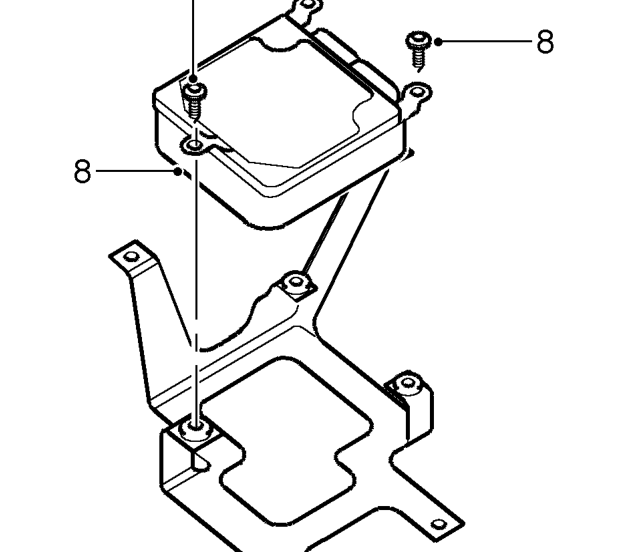

Electronic control unit (ecu) - abs – Remove support bracket and ECU.
  1. Remove 3 Torx screws from ECU and remove ECU from support bracket.

Refit

  1. Position ECU to support bracket and tighten Torx screws.
  2. Position ECU support bracket to floor and tighten rear nuts.
  3. Connect multiplugs to ECU.
  4. Slide seat fully rearward and tighten front nuts.
  5. Position ECU cover and tighten Torx screws.
  6. Reset seat position.
