Sensor and harness - ABS - rear

Refit

1. Clean mating surfaces of sensor and hub.
2. Fit NEW bush to hub.
3. Apply anti-seize grease to sensor.
4. Fit sensor to hub. Ensure sensor is fully seated in hub.
5. Secure harness grommets to brackets.
6. Pass sensor harness through wing valance and secure grommet.
7. Ensuring ’O’ ring is in place, connect sensor harness multiplug to body harness and secure multiplug in clip.
8. Fit wheel arch liner. See BODY, Exterior fittings.
9. Fit battery carrier. See ELECTRICAL, Repairs.
10. To ensure correct operation, the system MUST be tested using TestBook.

SENSOR AND HARNESS - ABS - REAR

Service repair no - 70.65.31

Remove

1. Raise rear of vehicle, one side.

WARNING: Support on safety stands.

2. Remove road wheel(s).

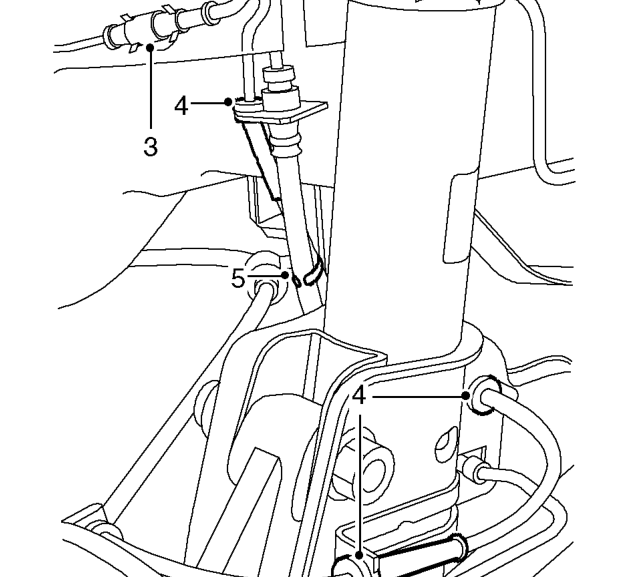

3. Release sensor multiplug from body clip and disconnect multiplug.
4. Release 3 sensor harness grommets from rear suspension and body brackets.
5. Release sensor harness from clip on rear brake hose.
