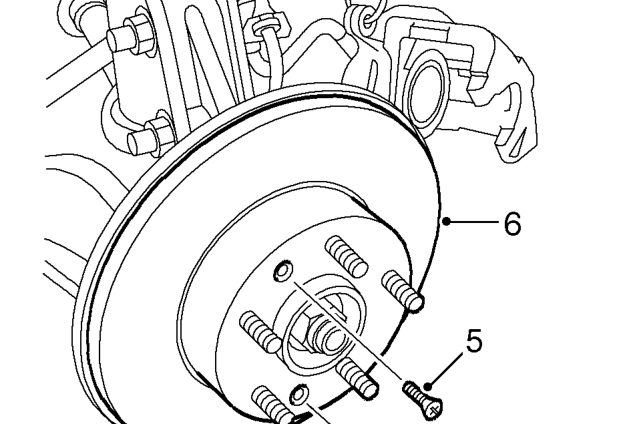

5. Remove 2 screws securing disc to drive flange.
6. Remove brake disc from drive flange.

Refit

1. Clean mating faces of drive flange and new disc.
2. Fit brake disc to drive flange, fit and tighten screws to 5 Nm.
3. Clean mating faces of caliper and hub.
4. Fit caliper, and tighten bolts to 83 Nm.
5. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
6. Remove stand(s) and lower vehicle.

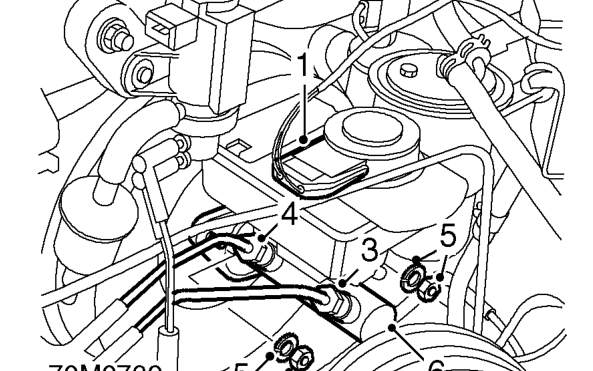

MASTER CYLINDER

Service repair no - 70.30.08

Remove

1. Disconnect fluid level switch multiplug.
2. Position cloth under master cylinder to absorb spilled fluid.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

3. Disconnect secondary system pipe union from master cylinder.
4. Disconnect primary system pipe union from master cylinder.

CAUTION: Plug the connections.

5. Remove 2 nuts and washers securing master cylinder.
6. Remove master cylinder.
