Land Rover Freelander Workshop Manual (1998-2000)22 · Brakes
22 · Brakes

Switch - brake light

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Switch - brake light
BrakesSwitch - brake light · page 1 of 2

SWITCH - BRAKE LIGHT

Service repair no - 70.35.42

Remove

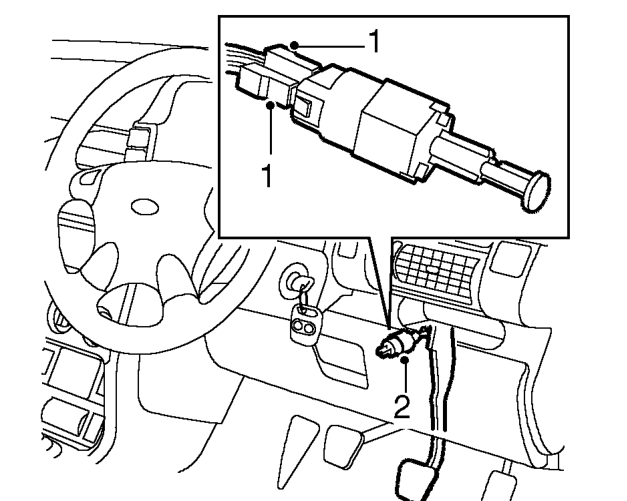

Switch - brake light – Service repair no - 70.35.42
  1. Release 2 Lucar connectors from switch.
  2. Release bayonet fixing and remove switch.

Refit

  1. Fit switch to pedal box.
  2. Connect Lucar connectors.
  3. Adjust switch See Adjustments.

BRAKE PADS - FRONT SET

Service repair no - 70.40.02

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

WARNING: Brake pads must be renewed in axle sets only. Braking efficiency may otherwise be impaired.

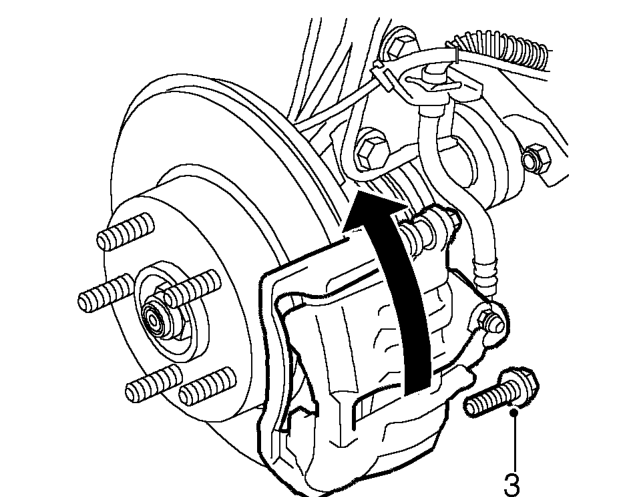

Brake pads - front set – Remove road wheel(s).
  1. Remove lower guide pin bolt from caliper and pivot caliper housing upwards.
