Land Rover Freelander Workshop Manual (1998-2000)22 · Brakes
22 · Brakes

Cable - handbrake

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Cable - handbrake
BrakesCable - handbrake · page 1 of 2

Refit

  1. Clean master cylinder and servo mating surfaces.
  2. Align servo push rod and fit master cylinder to servo.
  3. Fit nuts and washers, tighten to 14 Nm.
  4. Connect primary and secondary brake pipes, tighten unions to 14 Nm.
  5. Connect fluid level switch multiplug.
  6. Bleed brake system. See Adjustments.
  7. Remove stand(s) and lower vehicle.

CABLE - HANDBRAKE

Service repair no - 70.35.25

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Remove rear console. See BODY, Interior trim components.

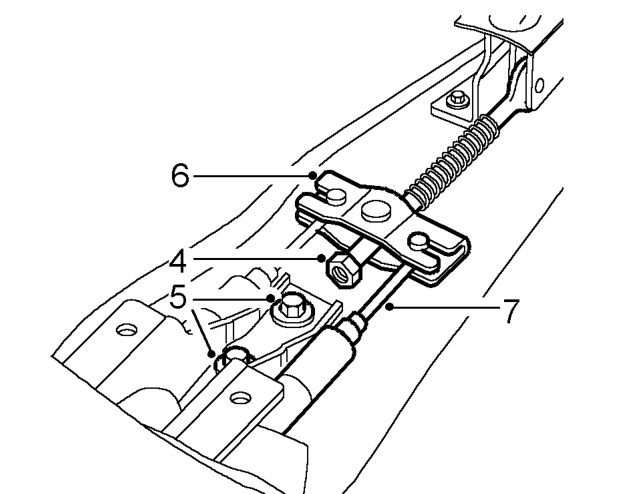

Cable - handbrake – Remove rear console. See BODY, Interior trim components.
  1. Remove cable adjusting nut.
  2. Remove 2 bolts securing cable retaining plate to body and remove plate.
  3. Release equalizer from adjusting rod.
  4. Release cable from equalizer plate.

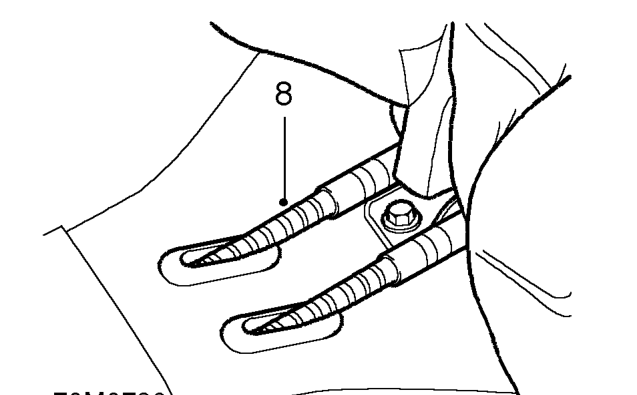

Cable - handbrake – Release cable from equalizer plate.
  1. Reach under carpet and release grommet from body.
