SENSOR AND HARNESS - ABS - FRONT

Service repair no - 70.65.30

Remove

  1. LH sensor only: Remove battery carrier. See ELECTRICAL, Repairs.
  2. Remove wheel arch liner. See BODY, Exterior fittings.

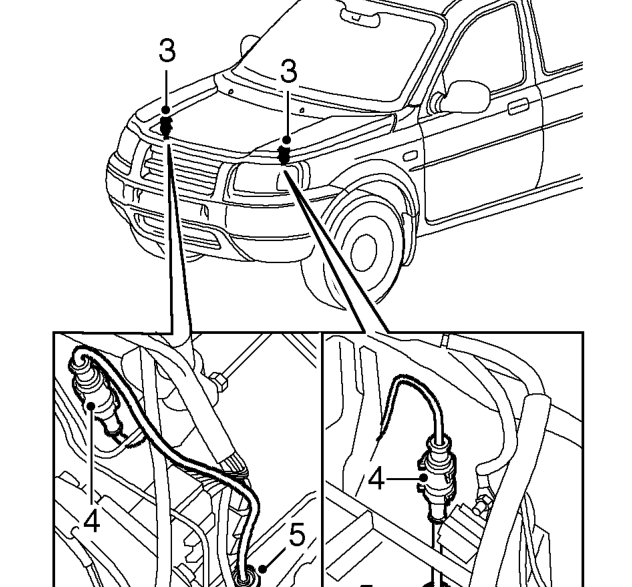

Sensor and harness - abs - front – Remove wheel arch liner. See BODY, Exterior fittings.
  1. Locate sensor harness multiplug on RH or LH under wing valance.
  2. Release multiplug from clip and disconnect multiplug.
  3. Release grommet from wing valance and pull harness through.

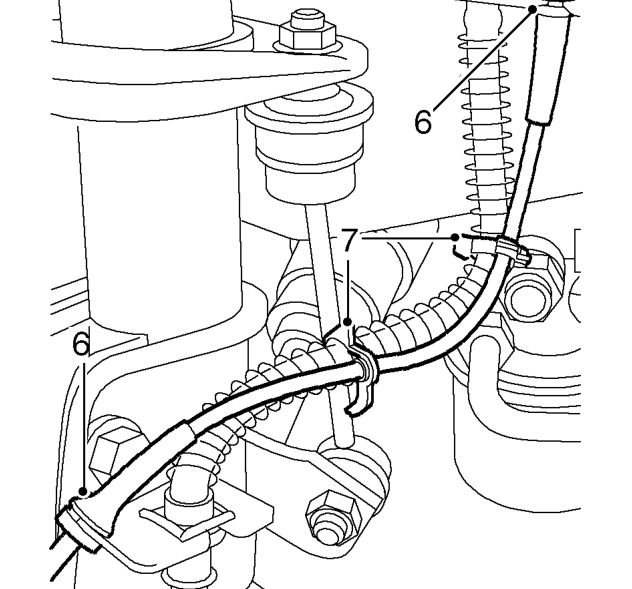

Sensor and harness - abs - front – Release grommet from wing valance and pull harness through.
  1. Release 2 sensor harness grommets from wing valance and suspension bracket.
  2. Release harness from brake hose clips.

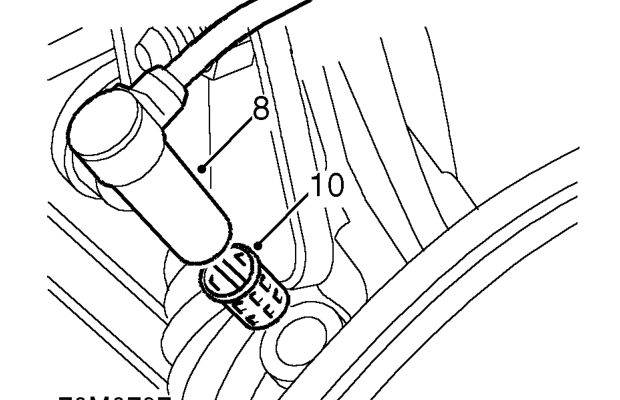

Sensor and harness - abs - front – Release harness from brake hose clips.
  1. Release sensor from front hub.
  2. Remove sensor and harness.
  3. Remove bush from front hub.
