BrakesServo - RHD

SERVO - RHD

Service repair no - 70.50.01

Remove

  1. Remove brake master cylinder. See this section.
Servo - rhd – Remove brake master cylinder. See this section.

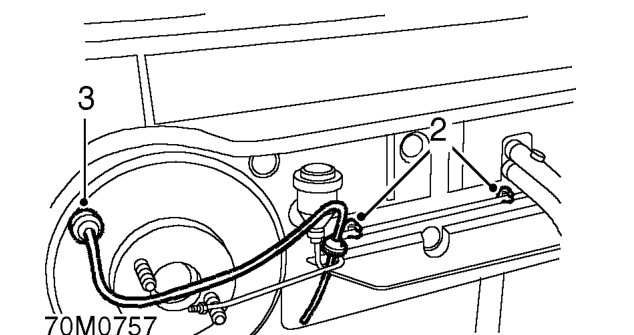

  1. Release brake pipes from clips on bulkhead.
  2. Release and disconnect vacuum hose from servo.
Servo - rhd – Release and disconnect vacuum hose from servo.

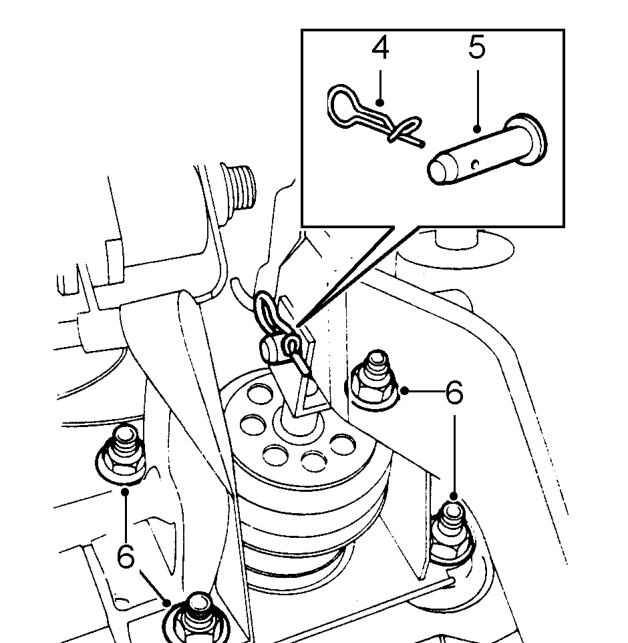

  1. Remove and discard spring clip from clevis pin.
  2. Remove clevis pin securing brake pedal to servo push rod.
  3. Remove 4 flange nuts securing servo to bulkhead.
  4. Remove servo.
  5. Remove and discard gasket.

Refit

  1. Fit NEW gasket to servo.
  2. Fit servo to bulkhead with vacuum connection uppermost, tighten nuts to 22 Nm..
  3. Align push rod to brake pedal, fit clevis pin and secure with NEW spring clip.
  4. Connect brake vacuum hose to servo.
  5. Fit brake master cylinder. See this section.
  6. Secure brake pipes to retaining clips.
