Pump - vacuum - brake servo - ’l’ series

PUMP - VACUUM - BRAKE SERVO - ’L’ SERIES

Service repair no - 70.50.19

Remove

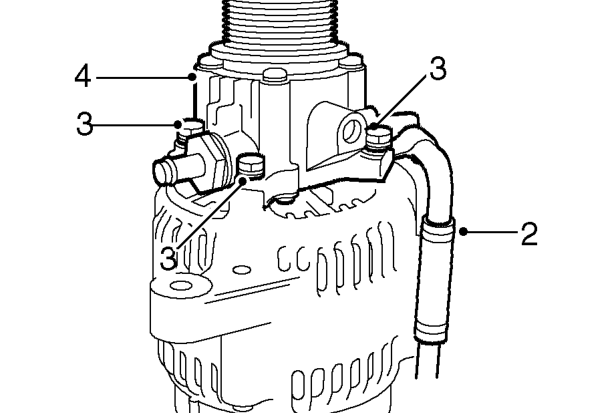

1. Remove alternator. See ELECTRICAL, Repairs.

2. Release clip and disconnect oil return hose from oil return pipe.
3. Remove 4 bolts securing vacuum pump to alternator.
4. Remove vacuum pump.

CAUTION: Plug the connections.

Refit

1. Clean mating face of alternator and vacuum pump.
2. Fit vacuum pump to alternator, fit bolts and tighten to 8 Nm.
3. Remove plugs from vacuum pump, drain hose connections.
4. Clean drain hose connections.
5. Connect oil return hose to oil return pipe and secure with clip.
6. Fit alternator. See ELECTRICAL, Repairs.

HOUSING - CALIPER - FRONT

Service repair no - 70.55.24

Remove

1. Raise front of vehicle, one side.

WARNING: Support on safety stands.

2. Remove road wheel(s).

CAUTION: A brake hose clamp must be used.

3. Clamp brake hose to prevent fluid loss.
4. Remove brake hose banjo bolt.
5. Discard 2 sealing washers.

CAUTION: Plug the connections.

6. Remove 2 guide pin bolts.

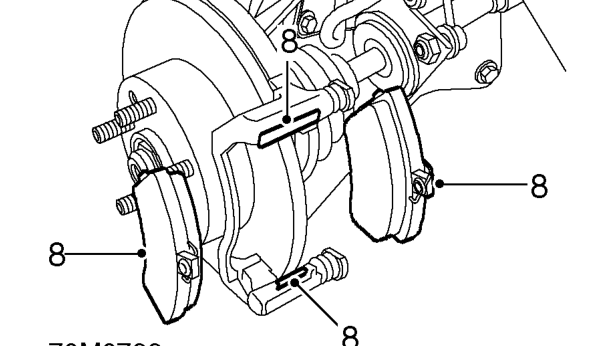

7. Remove caliper housing from carrier.

8. Remove 2 brake pads and retainers from caliper bracket.
