SERVO - LHD

Service repair no - 70.50.01

Remove

  1. Remove brake master cylinder. See this section.
  2. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
Servo - lhd – Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.

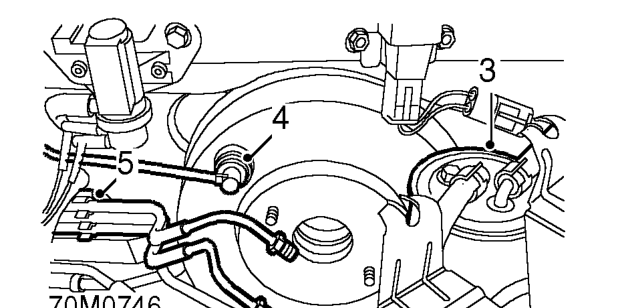

  1. Release fuel filter from bracket on LH front suspension turret.
  2. Release and disconnect vacuum hose from servo.
  3. Release brake pipes from clips on bulkhead.
Servo - lhd – Release brake pipes from clips on bulkhead.

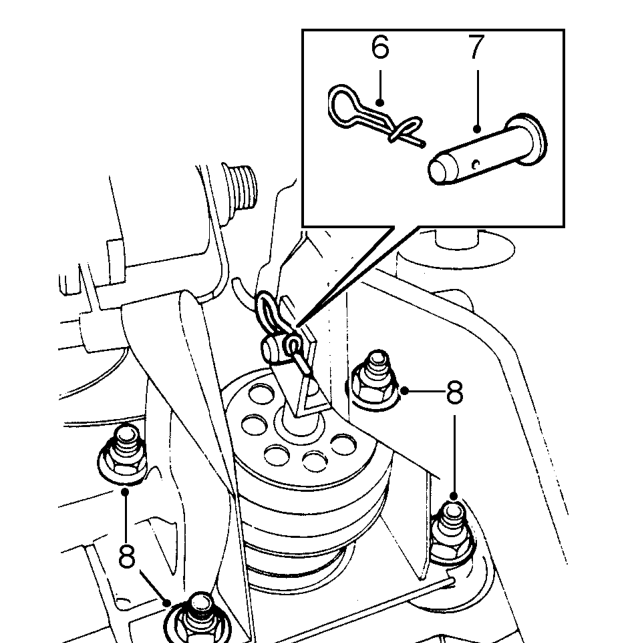

  1. Remove and discard spring clip from clevis pin.
  2. Remove clevis pin securing brake pedal to servo push rod.
  3. Remove 4 flange nuts securing servo to bulkhead.
  4. Remove servo.
  5. Remove and discard gasket.

Refit

  1. Fit NEW gasket to servo.
  2. Fit servo to bulkhead with vacuum connection uppermost, tighten nuts to 22 Nm.
  3. Align push rod to brake pedal, fit clevis pin and secure with NEW spring clip.
  4. Position fuel filter to retaining bracket.
  5. Connect brake vacuum hose to servo.
  6. Fit brake master cylinder. See this section.
  7. Secure brake pipes to retaining clips.
  8. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
