Air conditioningA/C Control Component Layout

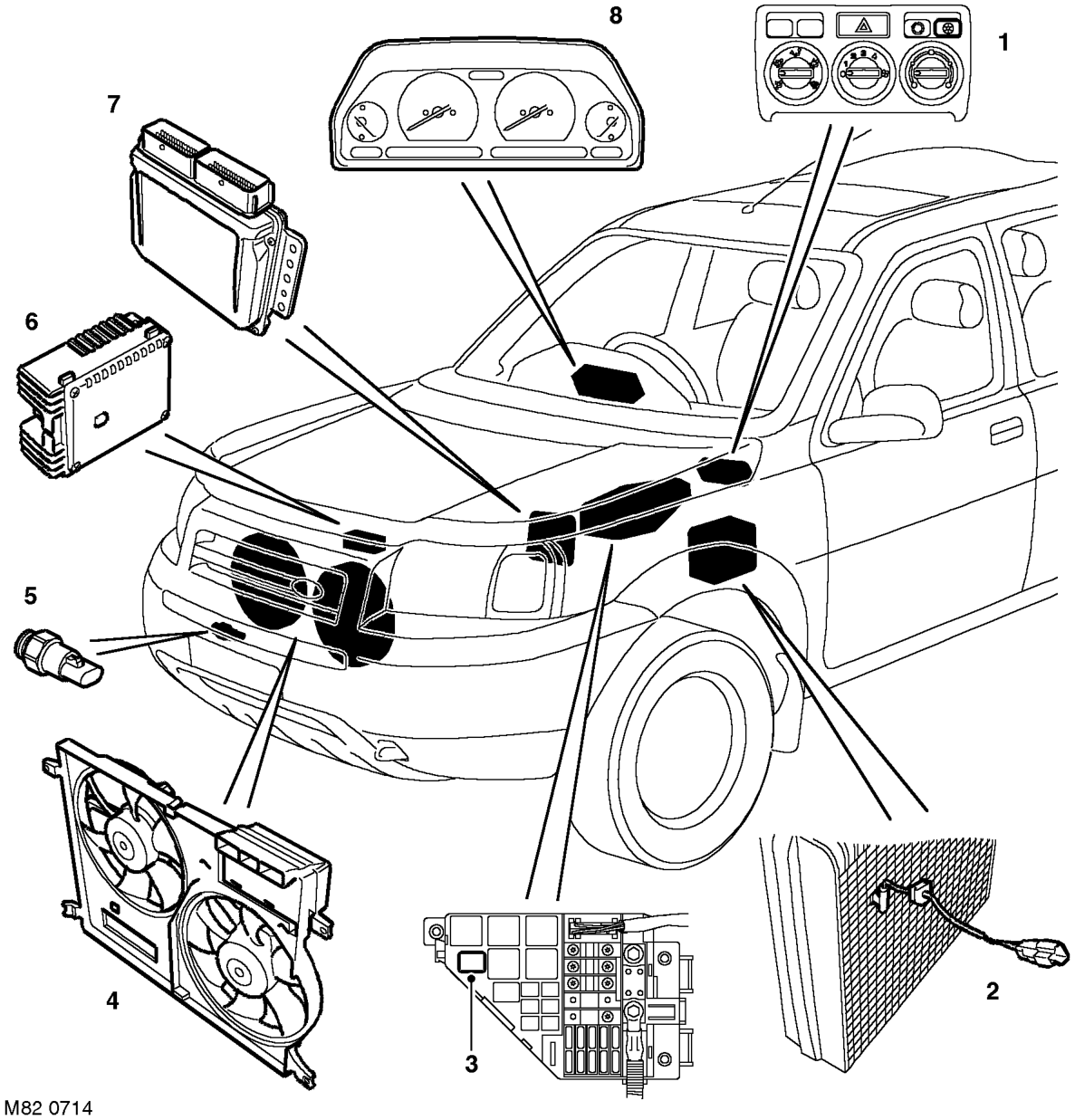

A/C Control Component Layout
1 Control panel 2 Evaporator temperature sensor 3 Compressor control relay 4 Cooling/condenser fans
5 Refrigerant pressure sensor 6 Cooling/condenser fan controller 7 Engine Control Module (ECM) 8 Instrument pack
