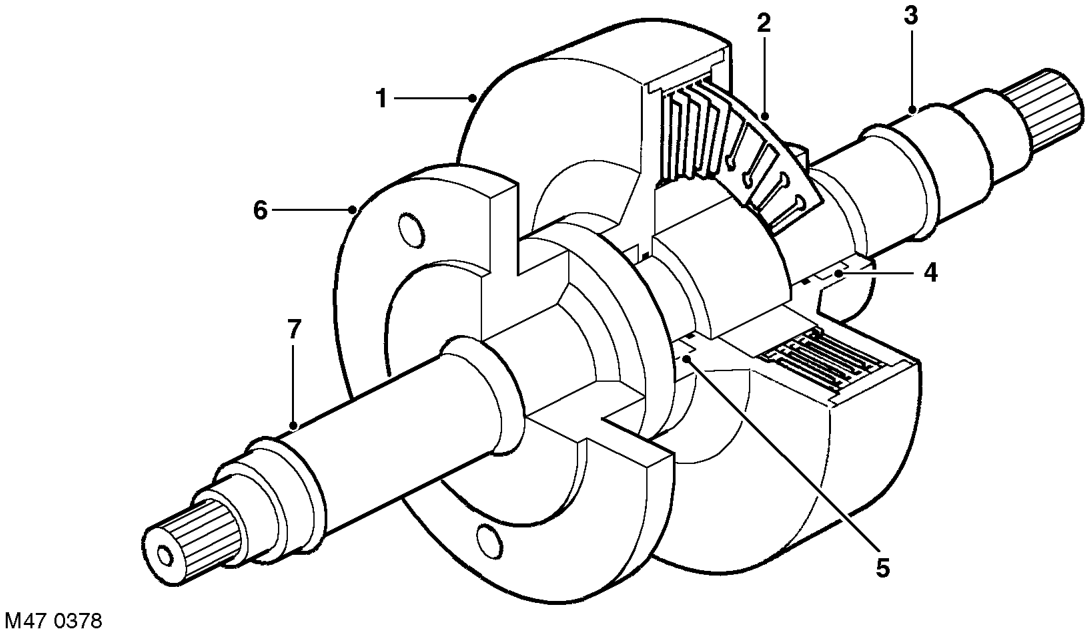

Section Through VCU (Driveshafts)

Section Through VCU

1 Cylinder 2 Slotted discs 3 Input shaft 4 Roller bearing

5 Ball bearing 6 Torsional damper flange (K1.8 models only) 7 Output shaft

The rear wheels are 0.8% under driven, so in most conditions the vehicle is effectively front wheel drive, with the rear wheels turning the rear propeller shaft slightly faster than the IRD drives the front propeller shaft. Since the speed differential is low, the increase in viscosity of the silicon jelly is marginal and there is little resistance to relative rotation of the slotted discs.

When there is a significant speed differential between the front and rear propeller shafts , e.g. the front wheels lose traction or traversing rough terrain, the viscosity and resistance to rotation of the silicon jelly increases to a level that slows or stops relative rotation of the slotted discs. With the front and rear propeller shafts locked together, drive is thus transferred from the IRD to the rear wheels.

Torsional Damper (1.8 K Series Models Only) The torsional damper reduces vibration from the propeller shafts. The damper consists of a rubber membrane bonded between an outer ring and an inner hub. Three bolts secure the inner hub to the output shaft of the VCU.

Propeller Shaft Bearings The two propeller shaft bearings are identical, and each consist of a roller bearing race mounted into a centre bearing housing. The bearing is sealed-for-life and is a press fit on the input/output shaft of the VCU. Bearing covers and flingers prevent the ingress of moisture.

Rear Propeller Shaft

The rear propeller shaft consists of a thin walled tube with a conventional universal joint welded to each end. The rear universal joint is bolted to the input flange of the final drive unit. The front universal joint is splined to the output shaft of the viscous coupling unit and secured by a bolt which is locked by a tabwasher and a 'U' washer. Both universal joints incorporate serviceable, sealed needle bearings.
