Timing Belt Components (Engine - K Series 1.8)

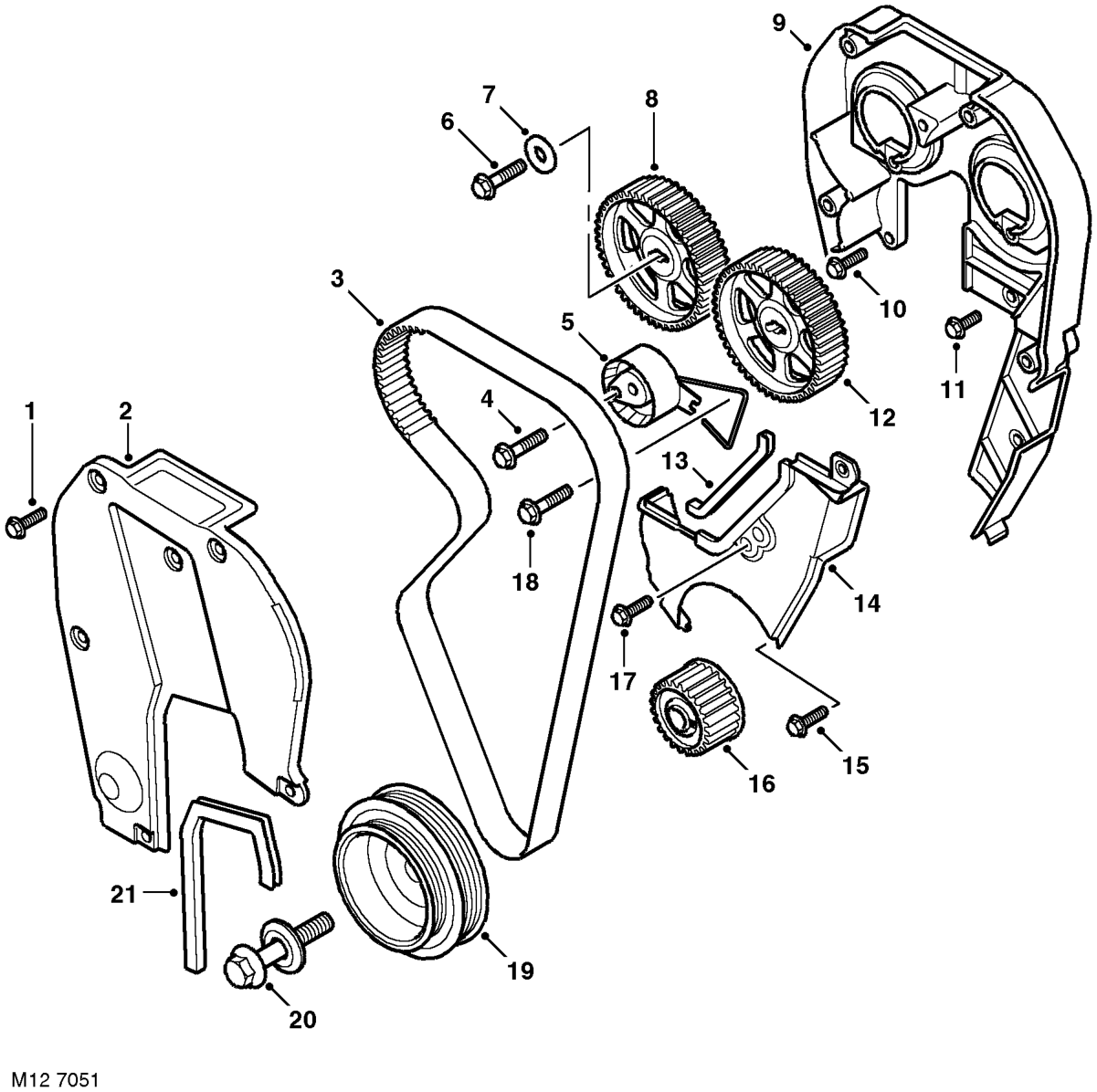

Timing Belt Components

1 Screws – upper front to upper rear drive belt cover (5 off) 2 Upper front drive belt cover 3 Drive belt 4 Bolt – tensioner to cylinder head 5 Tensioner 6 Bolt – camshaft drive gear to camshaft 7 Washer – camshaft drive gear to camshaft 8 Inlet camshaft drive gear 9 Upper rear drive belt cover assembly 10 Screw (long) – upper rear drive belt cover to cylinder block 11 Screws (short) – upper rear drive belt cover to cylinder block (4 off)

12 Exhaust camshaft drive gear 13 Seal – lower front drive belt cover 14 Lower front drive belt cover assembly 15 Screw – lower front drive belt cover to oil pump 16 Crankshaft drive gear 17 Screw – lower front drive belt cover to upper rear drive belt cover 18 Screw – tensioner index wire stop to cylinder head 19 Crankshaft pulley 20 Bolt and washer – crankshaft pulley 21 Seal – upper front drive belt cover
