Fuel delivery system - K Series 1.8Description
Description
General
The major components of the fuel delivery system comprise a fuel tank, a fuel pump, a fuel rail and four injectors. The fuel pump supplies fuel from the tank at a constant pressure, via a pipe routed along the underside of the vehicle, to the fuel rail. The fuel rail distributes the fuel equally to each of the four injectors.
Fuel Tank

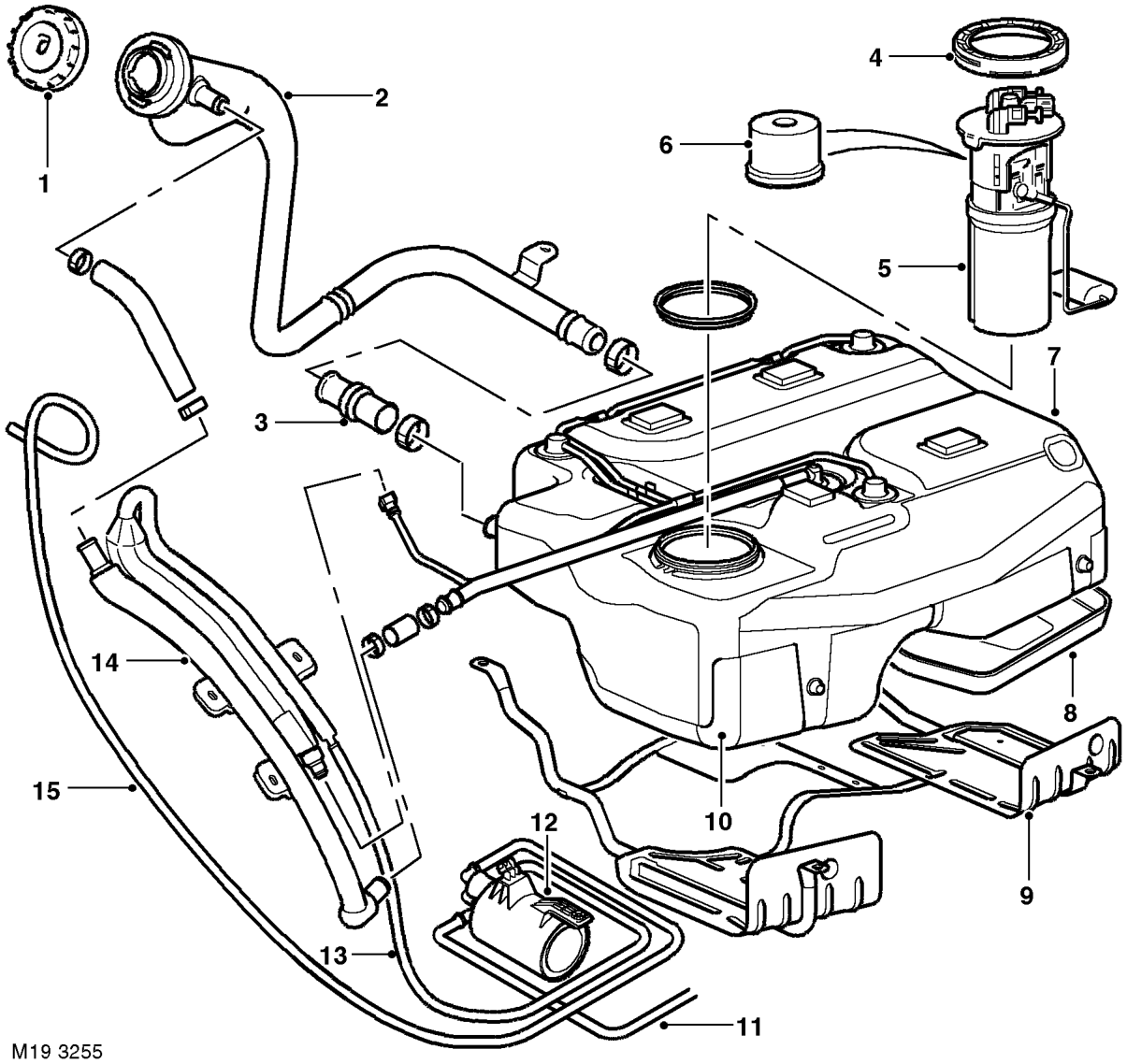

1 Filler cap 2 Filler tube 3 Flexible tube 4 Locking ring 5 Fuel pump and fuel gauge potentiometer 6 Fuel filter 7 Fuel tank 8 Fire shield
9 Cradle 10 Heat shield 11 Vent to EVAP purge valve 12 EVAP canister 13 Tank vent pipe to EVAP canister 14 Vent pipe 15 EVAP canister astmospheric vent
