Inlet Manifold Component Layout

Make

Land Rover

Model

Freelander System Description and Operation (UK)

Section

Description and operation › Inlet Manifold Component Layout

Manifold and exhaust system - Td4Inlet Manifold Component Layout

Inlet Manifold Component Layout

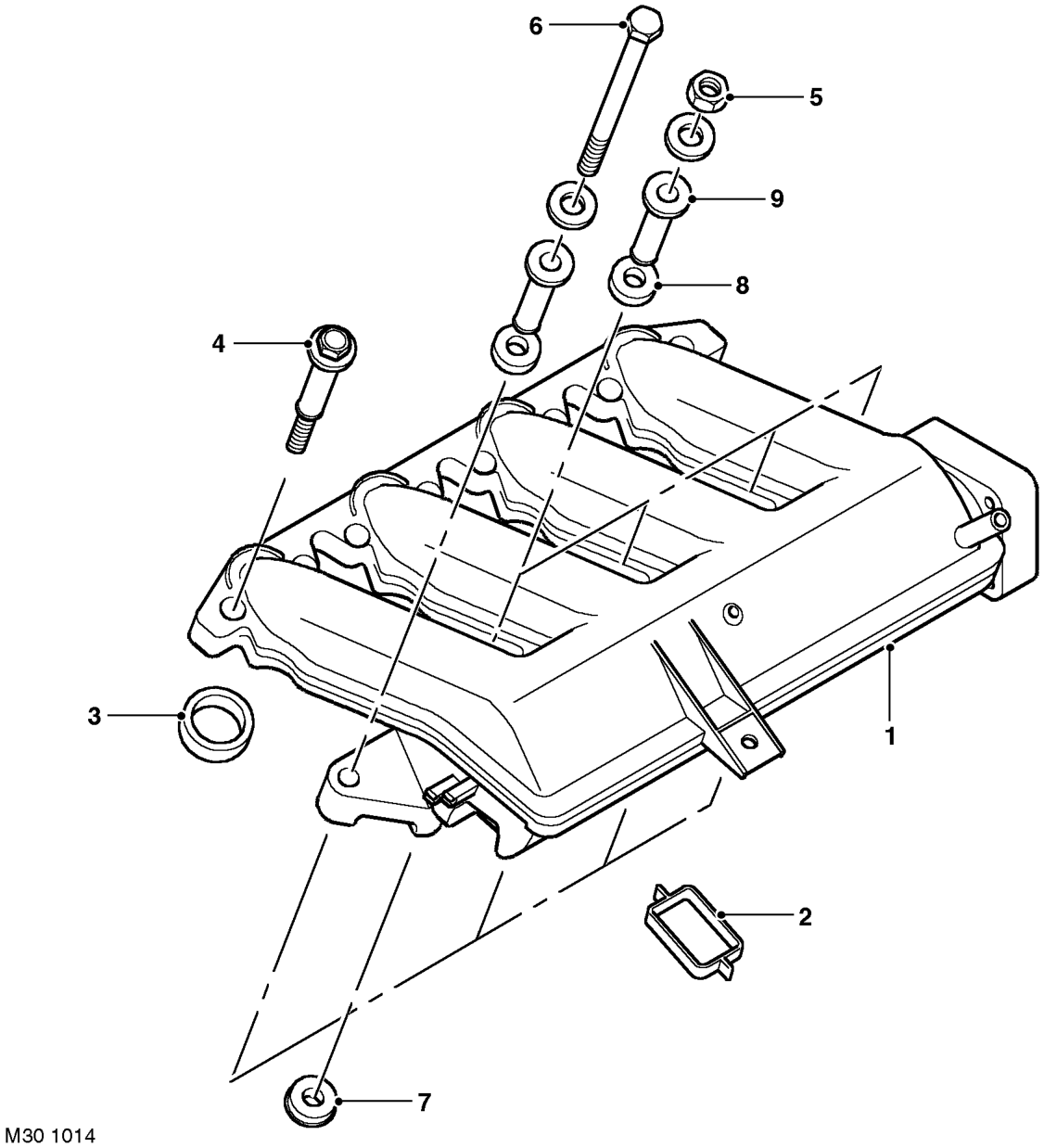

1 Inlet manifold 2 Seal (4 off) 3 Seal (4 off) 4 Bolt and compression limiter (8 off) 5 Nut (4 off)

6 Bolt 7 Seal (5 off) 8 Seal (5 off) 9 Compression limiter (5 off)
