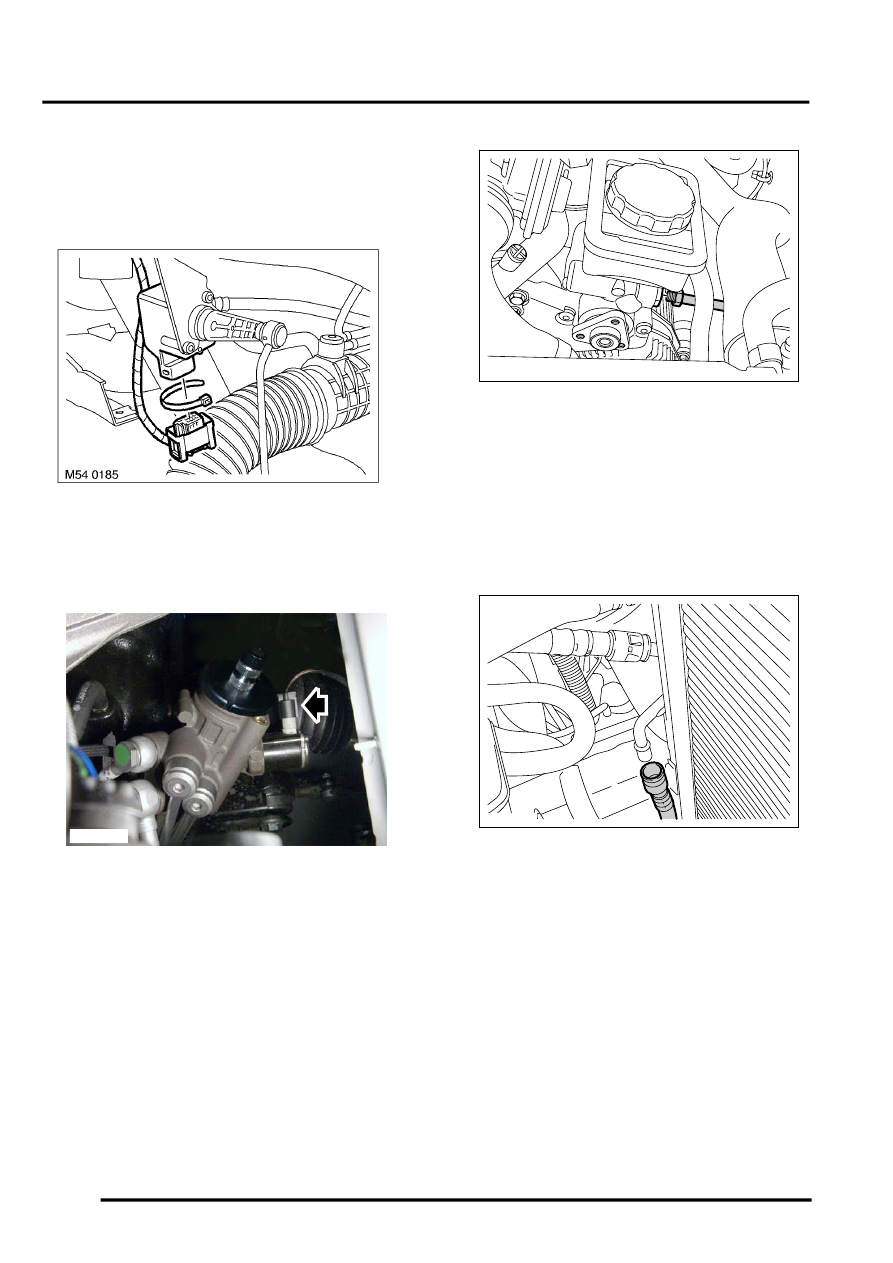

L322 Range Rover Service Procedures
FRONT DIFFERENTIAL
REPAIRS
54-3

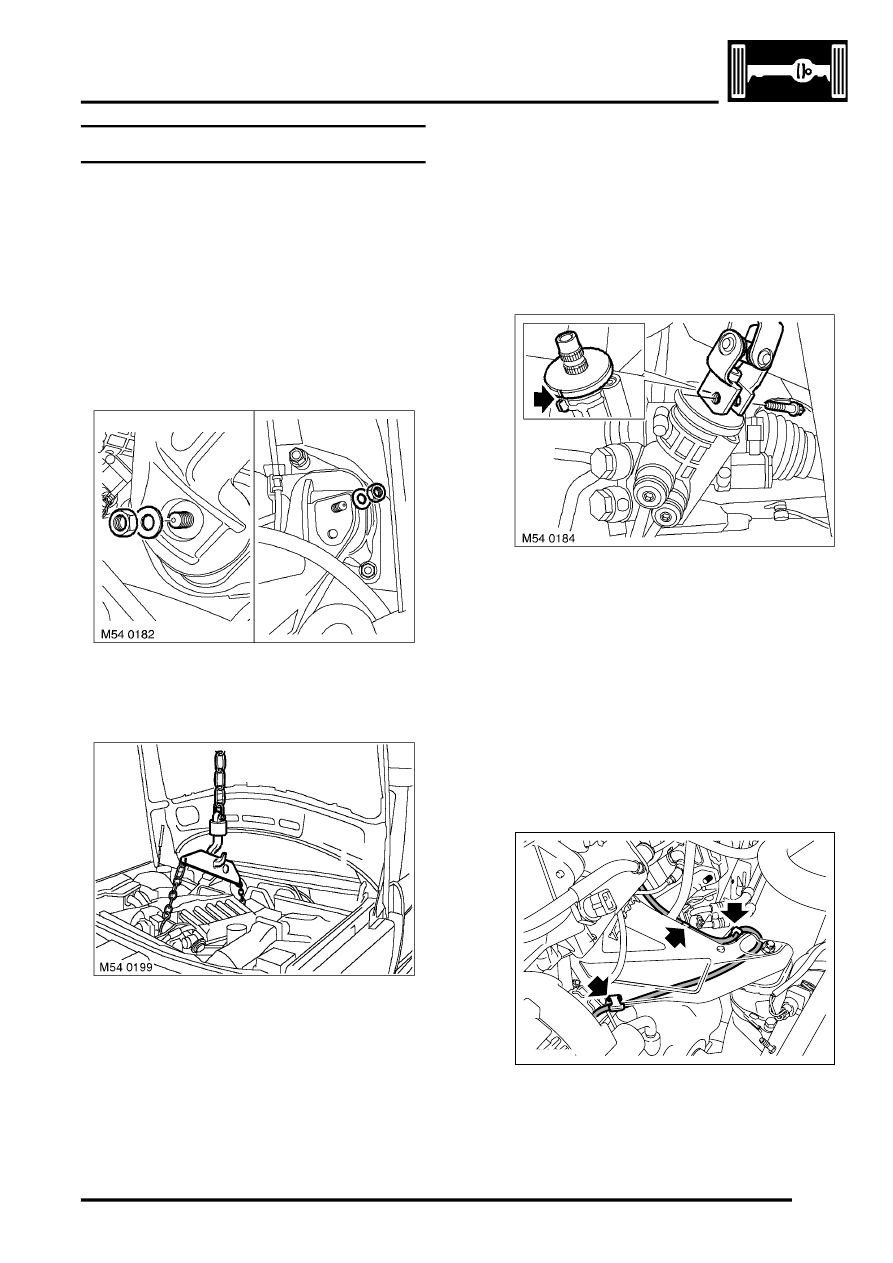

REPAIRS
Differential assembly - Td6
$% 54.10.01
Remove
1. Position vehicle on lift.
2. Disconnect battery earth lead.
3. Remove cooling fan.
4. Remove air intake plenum.
REPAIRS, Filter - fresh air intake.
5. Remove 2 nuts securing engine brackets to
mountings.
6. Fit LRT-12-216 to engine lifting eyes.
7. Connect chain to lifting bracket and take weight
of engine.
8. Drain oil from differential.
ADJUSTMENTS, Front differential - drain
and refill.
9. Remove front propeller shaft.
DRIVESHAFTS, REPAIRS, Propeller
10. Remove RH drive shaft seal.
11. Remove differential oil seal.
Oil seal - differential housing.
12. Remove Torx screw from steering column
lower clamp.
13. Rotate steering wheel to straight ahead
position, align pinion timing marks and remove
ignition key.
CAUTION: Do not turn the steering wheel
with the intermediate shaft or universal joint
disconnected as damage to the rotary
coupler and the steering wheel switches
may occur.
14. Disconnect column from pinion.
15. Release vacuum hose from 3 clips on engine
LH mounting bracket.
