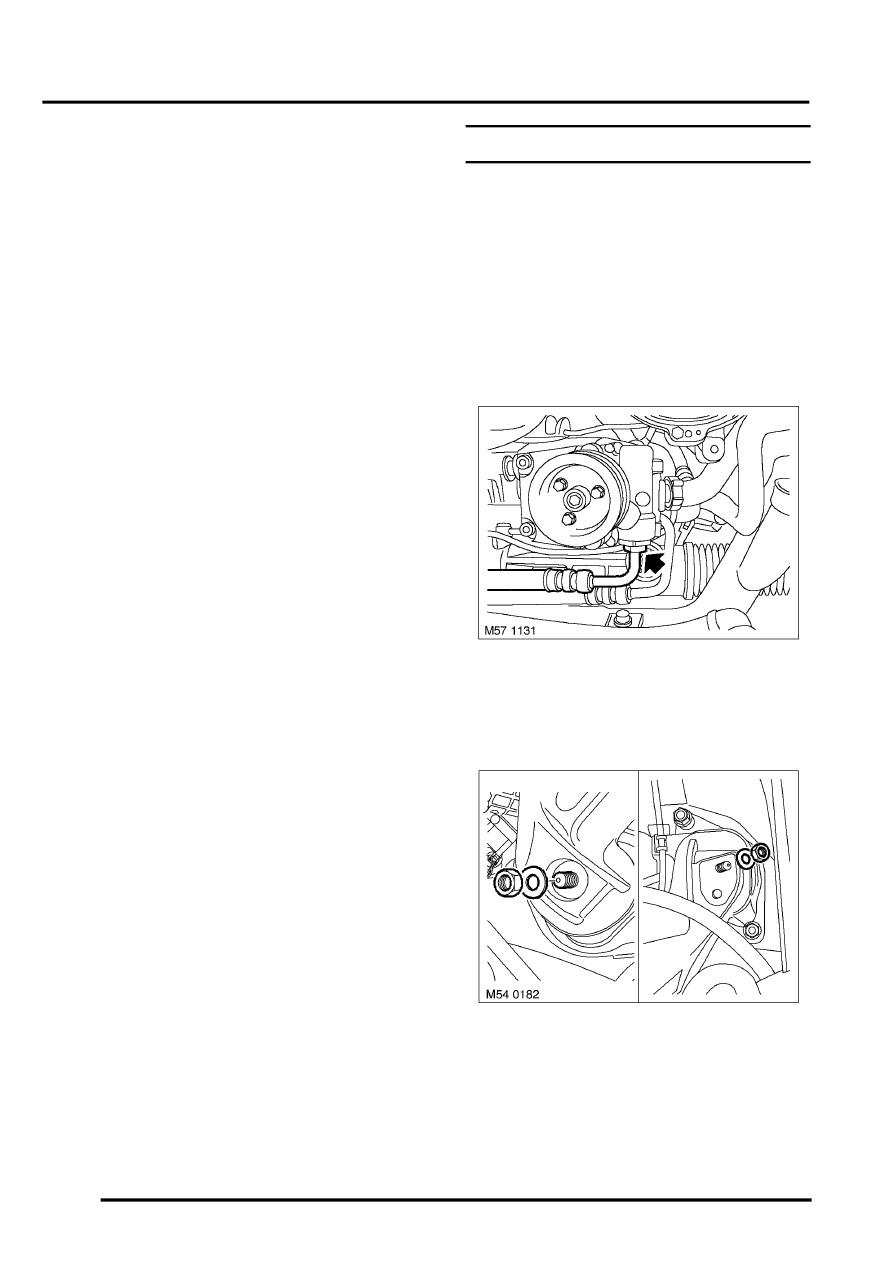

FRONT DIFFERENTIAL

REPAIRS

54-7

9. Drain oil from differential.

 +

 FRONT DIFFERENTIAL,

ADJUSTMENTS, Front differential - drain
and refill.

10. Remove front propeller shaft.

 +

 DRIVESHAFTS, REPAIRS, Propeller

shaft - front.

11. Remove RH drive shaft seal.

 +

 DRIVESHAFTS, REPAIRS, Seal -

drive shaft - front - RH.

12. Remove differential oil seal.

 +

 FRONT DIFFERENTIAL, REPAIRS,

Oil seal - differential housing.

13. Remove Torx bolt from steering column lower

clamp.

14. Rotate steering wheel to straight ahead

position, align pinion timing marks and remove
ignition key.

CAUTION: Do not turn the steering wheel
with the intermediate shaft or universal joint
disconnected as damage to the rotary
coupler and the steering wheel switches
may occur.

15. Disconnect column from pinion.

16. Note fitted position for refit then remove cable

ties securing height sensor harness to sub
frame and sensors.

17. Disconnect height sensor multiplugs.

18. Disconnect multiplug from PAS rack pinion

sensor.

M54 0186
