SUPPLEMENTARY RESTRAINT SYSTEM
11
PRECAUTIONS
•
When deploying seatbelt pre-tensioners in
the vehicle, ensure pre-tensioner unit is
secured correctly to seat.
•
When removing deployed airbag modules
and pre-tensioner units, wear protective
clothing. Use gloves and seal deployed units
in a plastic bag.
•
Following deployment of any component of
the SRS system within the vehicle, all SRS
components must be replaced. DO NOT
re-use or salvage any parts of the SRS
system.
•
Do not lean over airbag module when
connecting deployment equipment.
WARNING: If a vehicle is to be scrapped,
undeployed airbag modules and
pre-tensioner units must be manually
deployed in the vehicle; before deployment,
ensure the airbag module is secure within its
correct mounting position.
CAUTION: Deployment of the driver’s front
airbag in the vehicle may damage the
steering wheel; if the vehicle is not being
scrapped, deploy the module outside of the
vehicle.
CAUTION: Deployment of the side airbags
will rupture the seat covers; if the vehicle
is not being scrapped, deploy the module
outside of the vehicle.
Airbag module and seatbelt pre-tensioner
deployment procedure
Before deployment is started, the deployment tool self
test should be carried out.

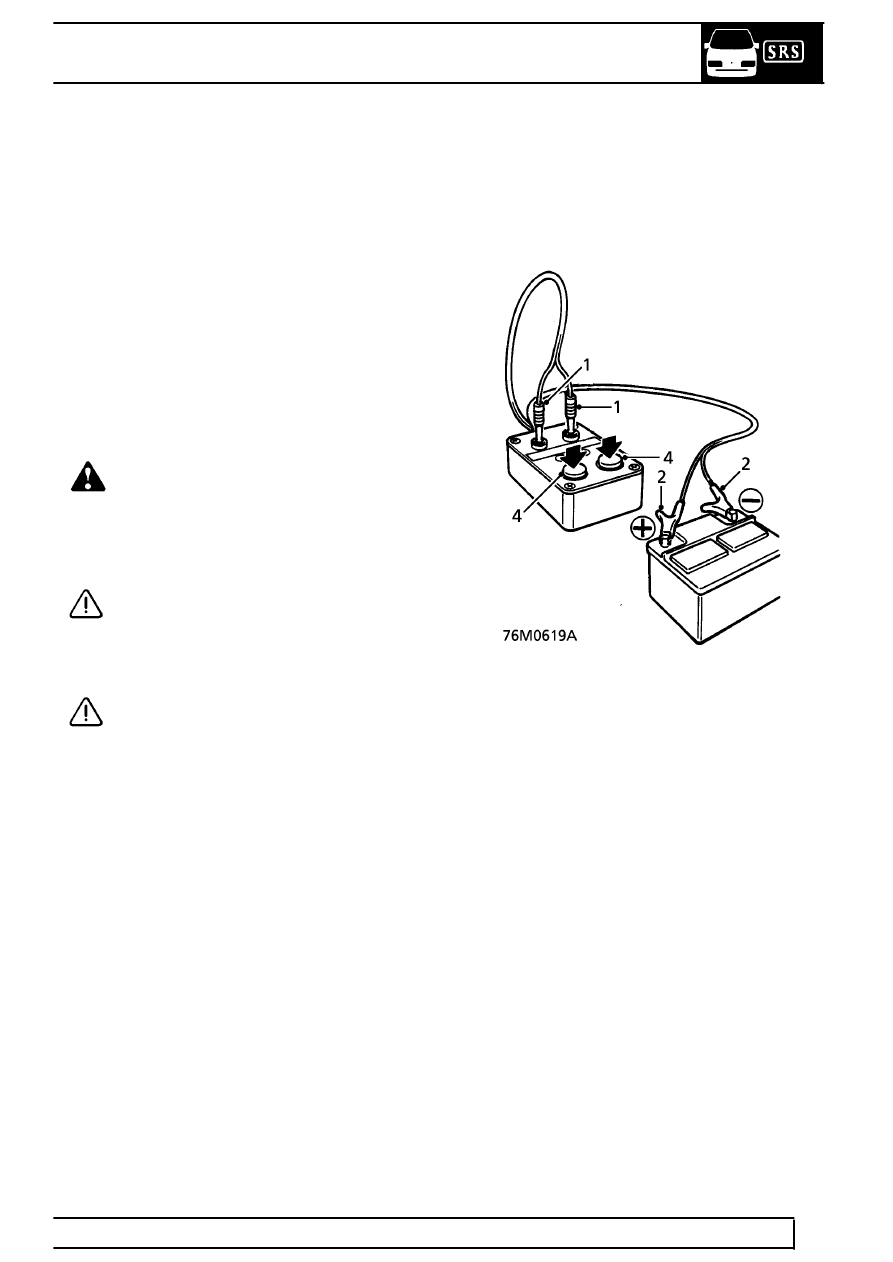

Deployment tool SMD 4082/1 self test procedure
1. Insert blue and yellow connectors of tool lead
into corresponding sockets on face of tool.
2. Connect crocodile clips of second tool lead to
battery, red to positive and black to negative.
3. Red "READY" light should illuminate.
4. Press and hold both operating buttons.
5. Green "DEFECTIVE" light should illuminate.
6. Release both operating buttons.
7. Red "READY" light should illuminate.
8. Disconnect tool from battery.
9. Disconnect blue and yellow connectors from tool
face sockets.
10. Self test is now complete.
