Blower controls – . 1995 Range Rover

BLOWER CONTROLS – . 1995 RANGE ROVER

Interior Lamps

0.5 LG 4

B140 Ventilation Con- trol Panel Illumi- nation

3

0.5 WB

S244

See Ground Dis- tribution

E201

E L E C T R I C A L

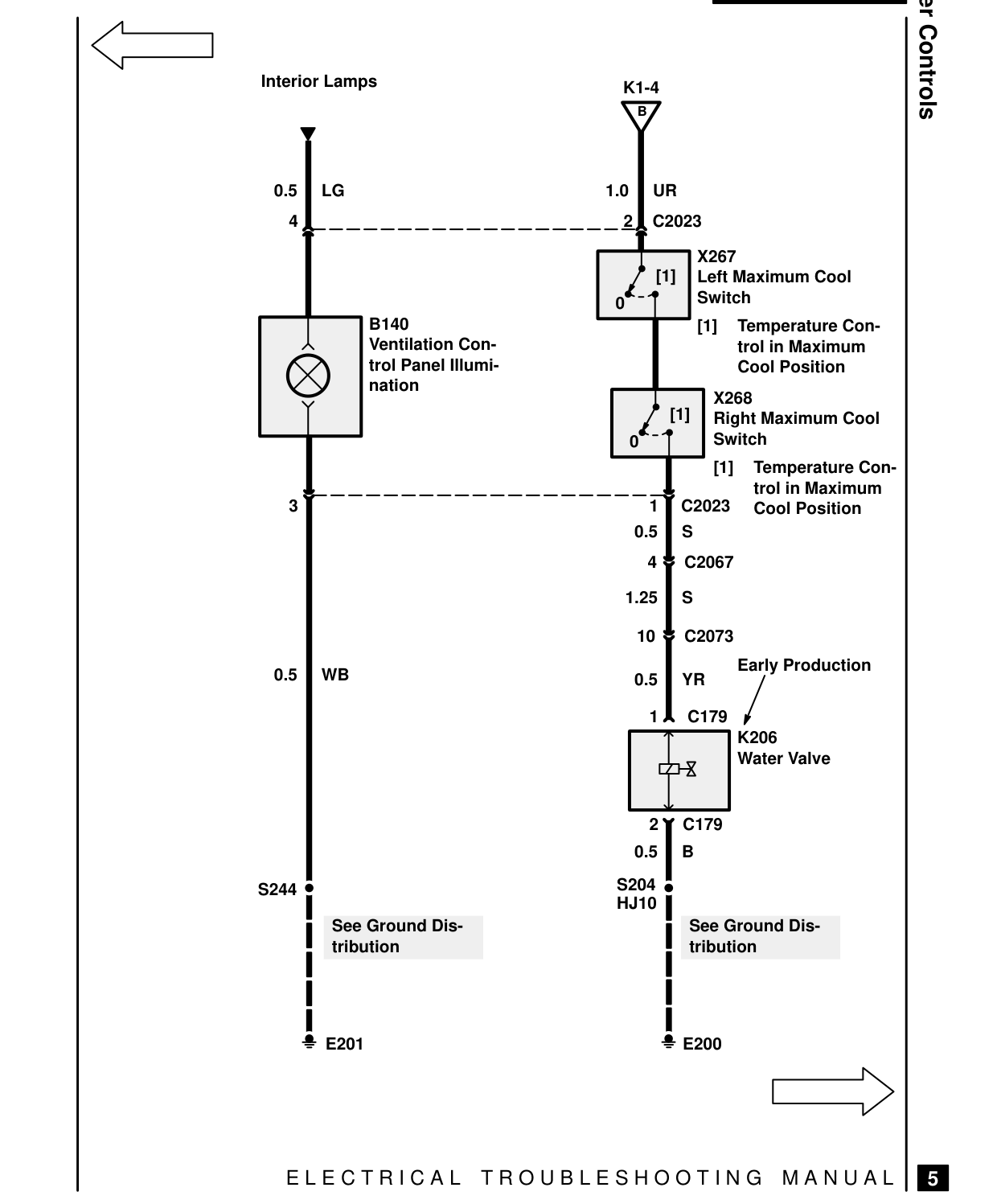

Blower Controls K1-4 B

1.0 UR 2 C2023

X267 [1] Left Maximum Cool Switch 0 [1] Temperature Con- trol in Maximum Cool Position X268 [1] Right Maximum Cool Switch 0 [1] Temperature Con- trol in Maximum 1 C2023 Cool Position 0.5 S 4 C2067

1.25 S

10 C2073 Early Production 0.5 YR

1 C179 K206 Water Valve

2 C179 0.5 B S204 HJ10 See Ground Dis- tribution

E200
