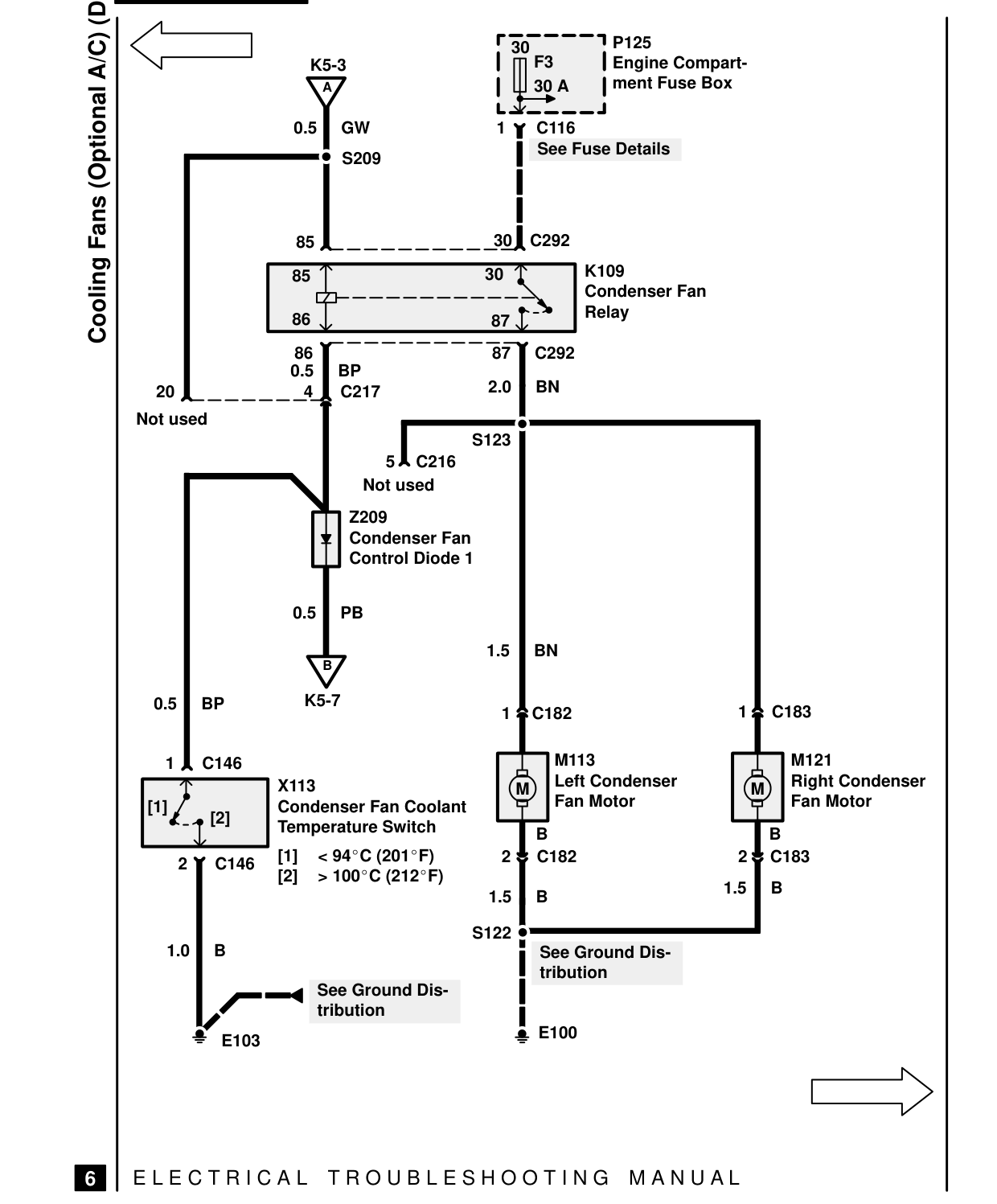

Cooling fans – circuit diagram

COOLING FANS – CIRCUIT DIAGRAM

Cooling Fans (Optional A/C) (Diesel) K5-3 A

0.5 GW S209

85

85

86

86 0.5 BP 20 4 C217 Not used

5 C216 Not used Z209 Condenser Fan Control Diode 1

0.5 PB

B

K5-7 0.5 BP

1 C146 X113 Condenser Fan Coolant [1] [2] Temperature Switch [1]

< 94
C (201
F)

2 C146 [2]

> 100
C (212
F)

1.0 B

See Ground Dis- tribution E103

E L E C T R I C A L T R O U B L E S H O O T I N G

6

P125 30 F3 Engine Compart- ment Fuse Box 30 A

1 C116 See Fuse Details

30 C292 K109 30 Condenser Fan Relay 87 87 C292

2.0 BN

S123

1.5 BN

1 C183 1 C182

M121 M113 Right Condenser Left Condenser M M Fan Motor Fan Motor

B B 2 C182 2 C183 1.5 B 1.5 B

S122 See Ground Dis- tribution

E100

M A N U A L
