Cruise control – circuit diagram

Make

Land Rover

Model

Range Rover Classic Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Cruise control – circuit diagram

Cruise controlCruise control – circuit diagram

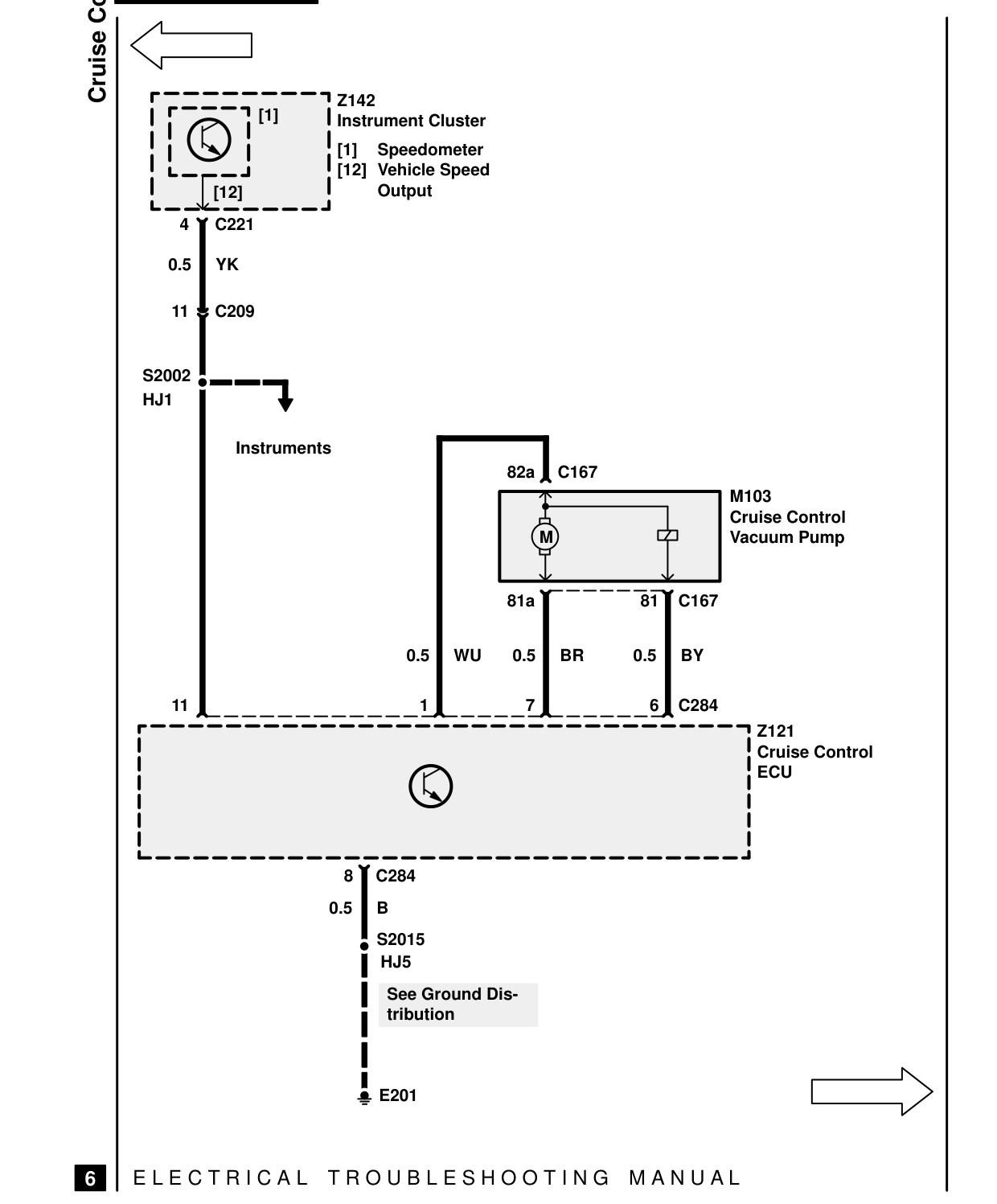

CRUISE CONTROL – CIRCUIT DIAGRAM

Cruise Control Z142 [1] Instrument Cluster [1] Speedometer [12] Vehicle Speed Output [12] 4 C221

0.5 YK

11 C209

S2002 HJ1

Instruments

0.5

11 1

8 C284 0.5 B S2015 HJ5 See Ground Dis- tribution

E201

E L E C T R I C A L T R O U B L E S H O O T I N G

6

82a C167 M103 Cruise Control M Vacuum Pump

81a 81 C167

WU 0.5 BR 0.5 BY

7 6 C284 Z121 Cruise Control ECU

M A N U A L
