Range Rover Classic Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Fuse details – circuit diagram

Fuse detailsFuse details – circuit diagram

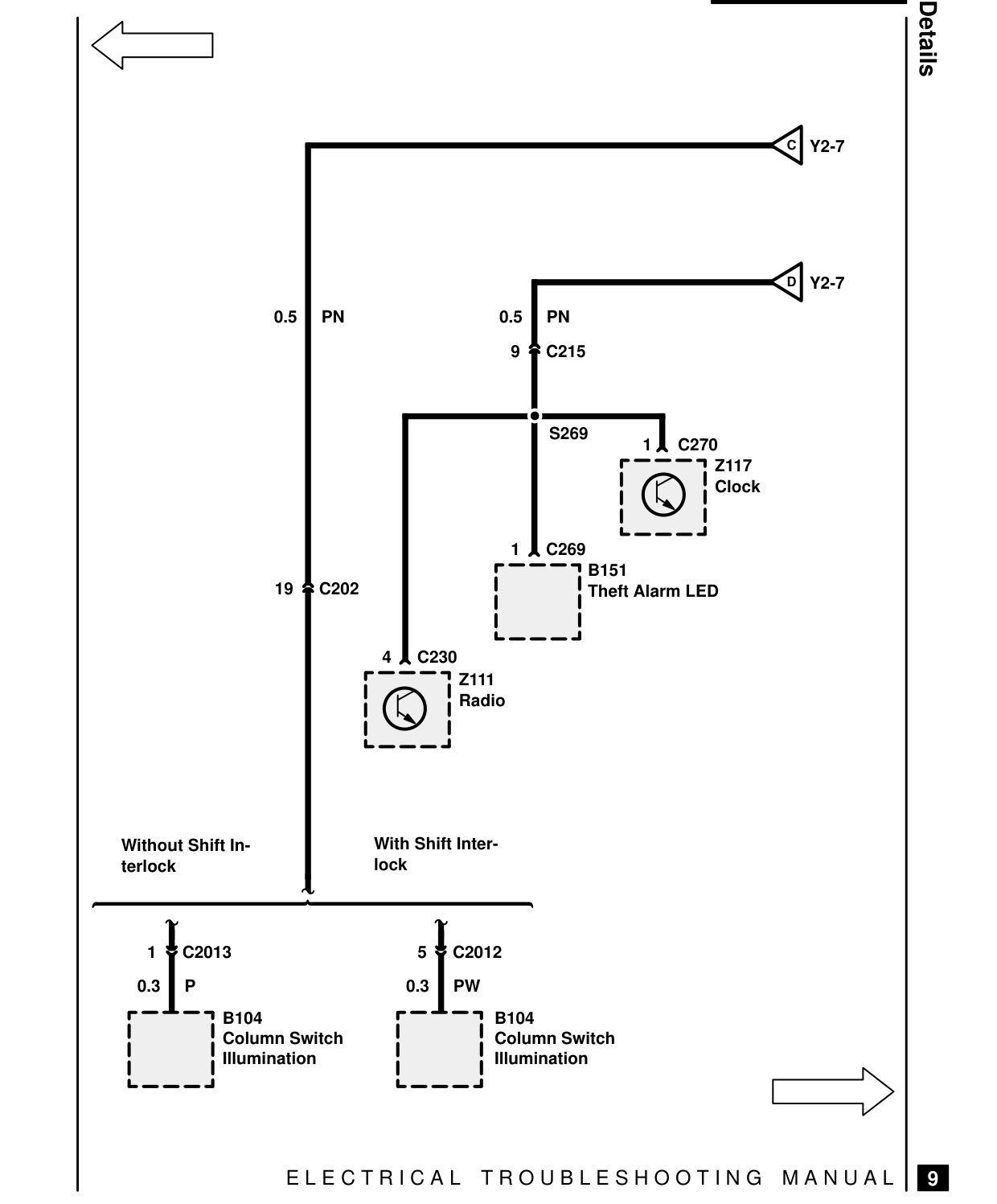

FUSE DETAILS – CIRCUIT DIAGRAM

0.5 PN

19 C202

4 C230 Z111 Radio

With Shift Inter- Without Shift In- lock terlock

1 C2013 5 C2012

0.3 P 0.3 PW B104 Column Switch Illumination

E L E C T R I C A L

Fuse Details

Y2-7 C

Y2-7 D

0.5 PN

9 C215

S269 1 C270 Z117 Clock

1 C269 B151 Theft Alarm LED

B104 Column Switch Illumination
