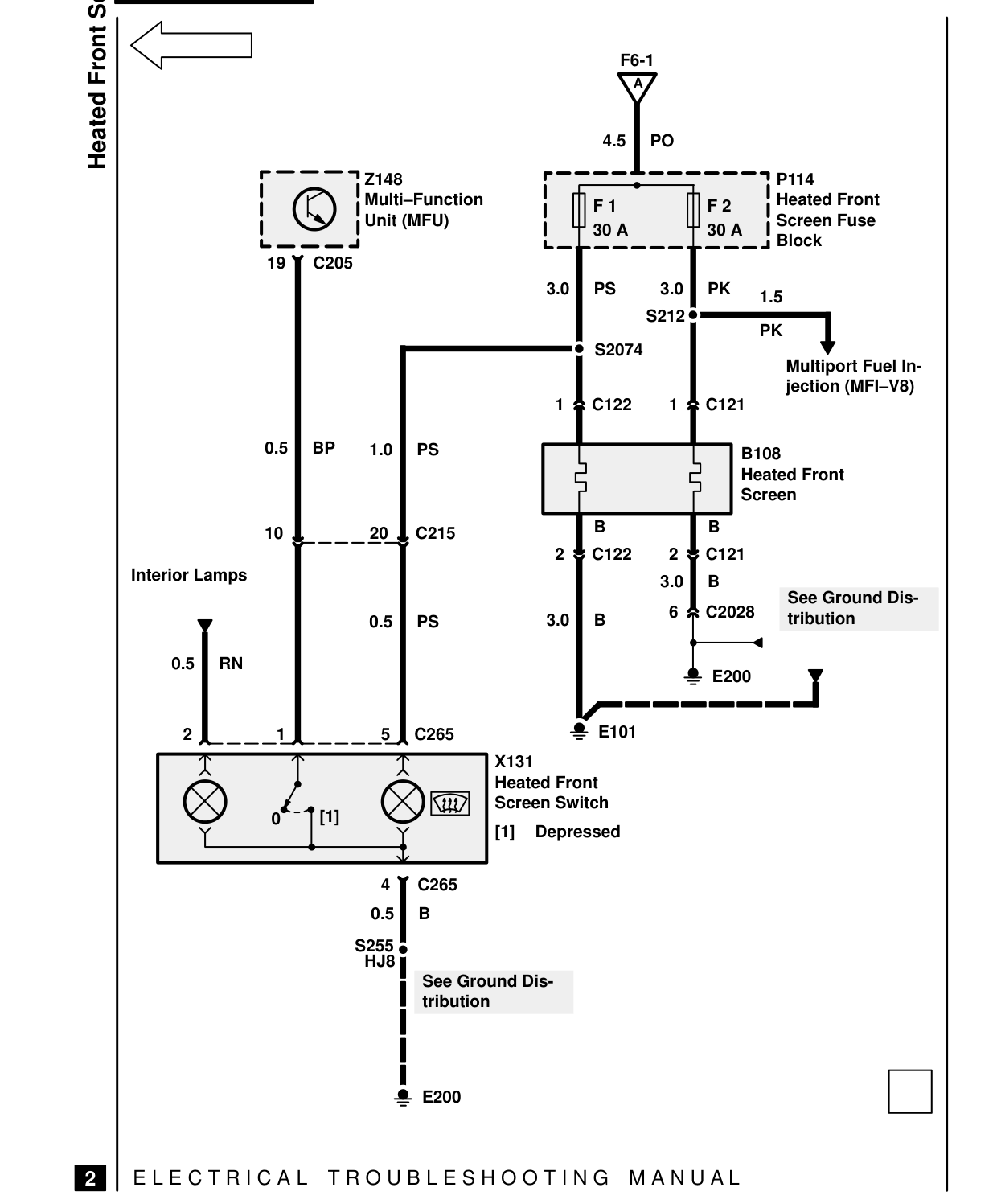

Heated front screen – circuit diagram

HEATED FRONT SCREEN – CIRCUIT DIAGRAM

Heated Front Screen Z148 Multi-Function Unit (MFU)

19 C205

0.5 BP 1.0 PS

10 20 C215

Interior Lamps

0.5 PS

0.5 RN

2 1 C265 5

[1] 0

4 C265 0.5 B S255 HJ8 See Ground Dis- tribution

E200

E L E C T R I C A L T R O U B L E S H O O T I N G

2

F6-1 A

4.5 PO

P114 Heated Front F 1 F 2 Screen Fuse 30 A 30 A Block

3.0 PS 3.0 PK 1.5 S212 PK S2074 Multiport Fuel In- jection (MFI-V8) 1 C122 1 C121

B108 Heated Front Screen B B 2 C122 2 C121 3.0 B See Ground Dis- 6 C2028 tribution 3.0 B

E200

E101 X131 Heated Front Screen Switch [1] Depressed

M A N U A L
