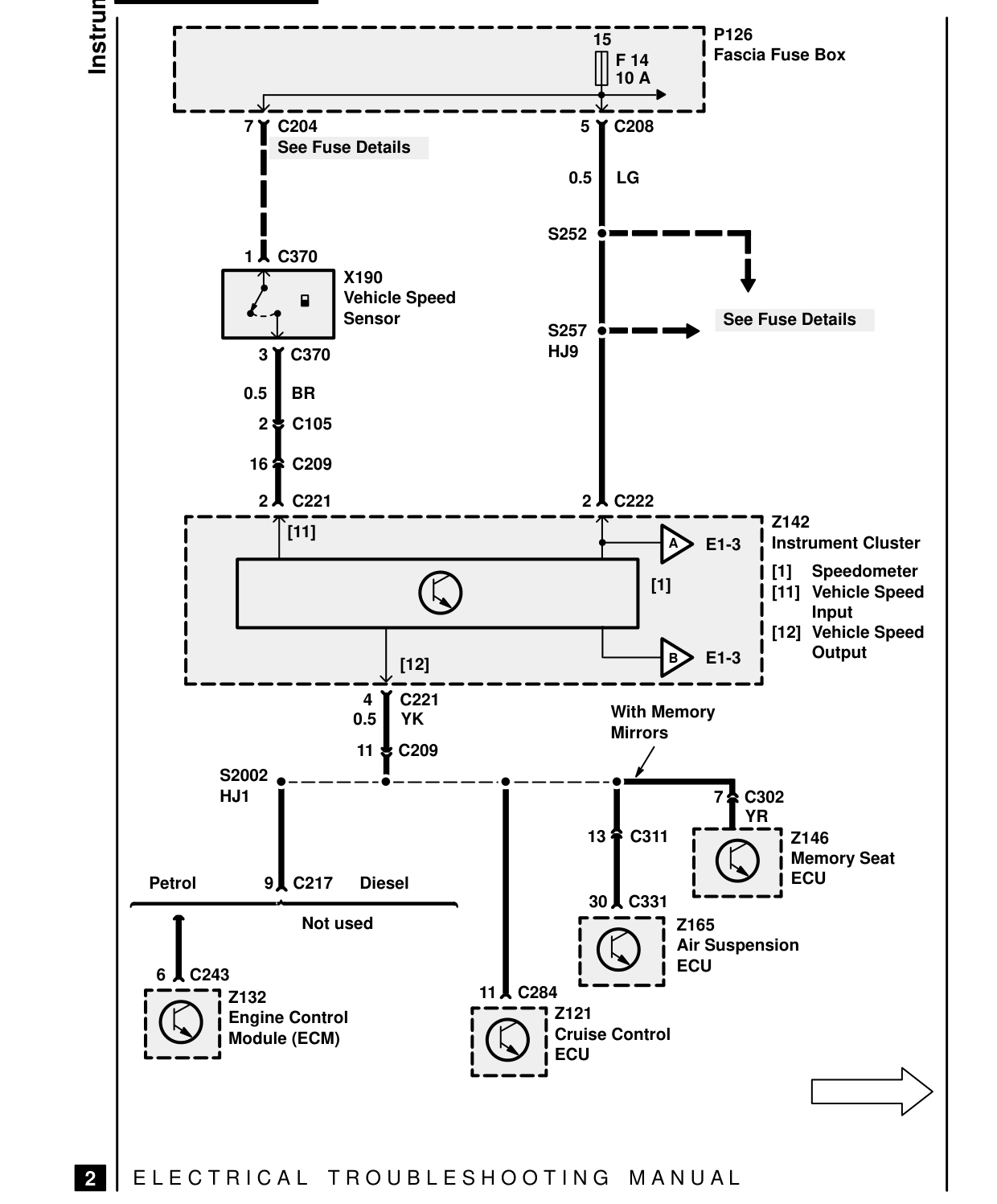

Instruments – circuit diagram

INSTRUMENTS – CIRCUIT DIAGRAM

Instruments

7 C204 See Fuse Details

1 C370 X190 Vehicle Speed Sensor

3 C370

0.5 BR 2 C105

16 C209

2 C221 [11]

[12]

4 C221 0.5 YK 11 C209 S2002 HJ1

Petrol C217 Diesel 9

Not used

6 C243 Z132 Engine Control Module (ECM)

E L E C T R I C A L T R O U B L E S H O O T I N G

2

P126 15 Fascia Fuse Box F 14 10 A

5 C208

0.5 LG

S252

See Fuse Details S257 HJ9

2 C222 Z142 Instrument Cluster E1-3 A [1] Speedometer [1] [11] Vehicle Speed Input [12] Vehicle Speed Output E1-3 B

With Memory Mirrors

7 C302 YR 13 C311 Z146 Memory Seat ECU 30 C331 Z165 Air Suspension ECU 11 C284 Z121 Cruise Control ECU
