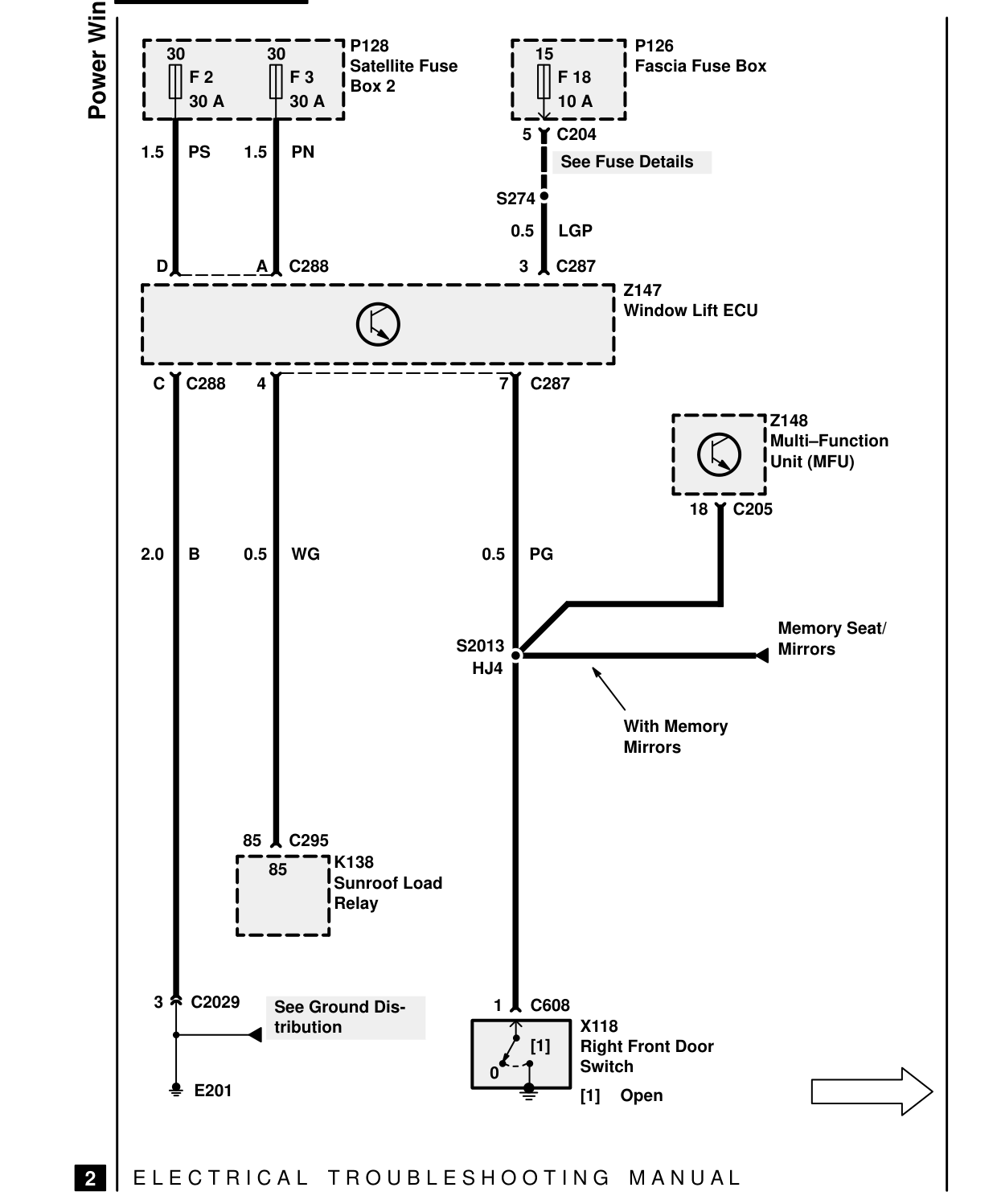

Power windows – circuit diagram

POWER WINDOWS – CIRCUIT DIAGRAM

Power Windows P128 30 30 Satellite Fuse F 2 F 3 Box 2 30 A 30 A

1.5 PN 1.5 PS

D A C288

C C288 4

2.0 B 0.5 WG

85 C295 K138 85 Sunroof Load Relay

3 C2029 See Ground Dis- tribution

E201

E L E C T R I C A L T R O U B L E S H O O T I N G

2

P126 15 Fascia Fuse Box F 18 10 A 5 C204 See Fuse Details

S274 0.5 LGP

3 C287 Z147 Window Lift ECU

7 C287

Z148 Multi-Function Unit (MFU)

18 C205

0.5 PG

Memory Seat/ S2013 Mirrors HJ4

With Memory Mirrors

1 C608 X118 [1] Right Front Door Switch 0 [1] Open

M A N U A L
