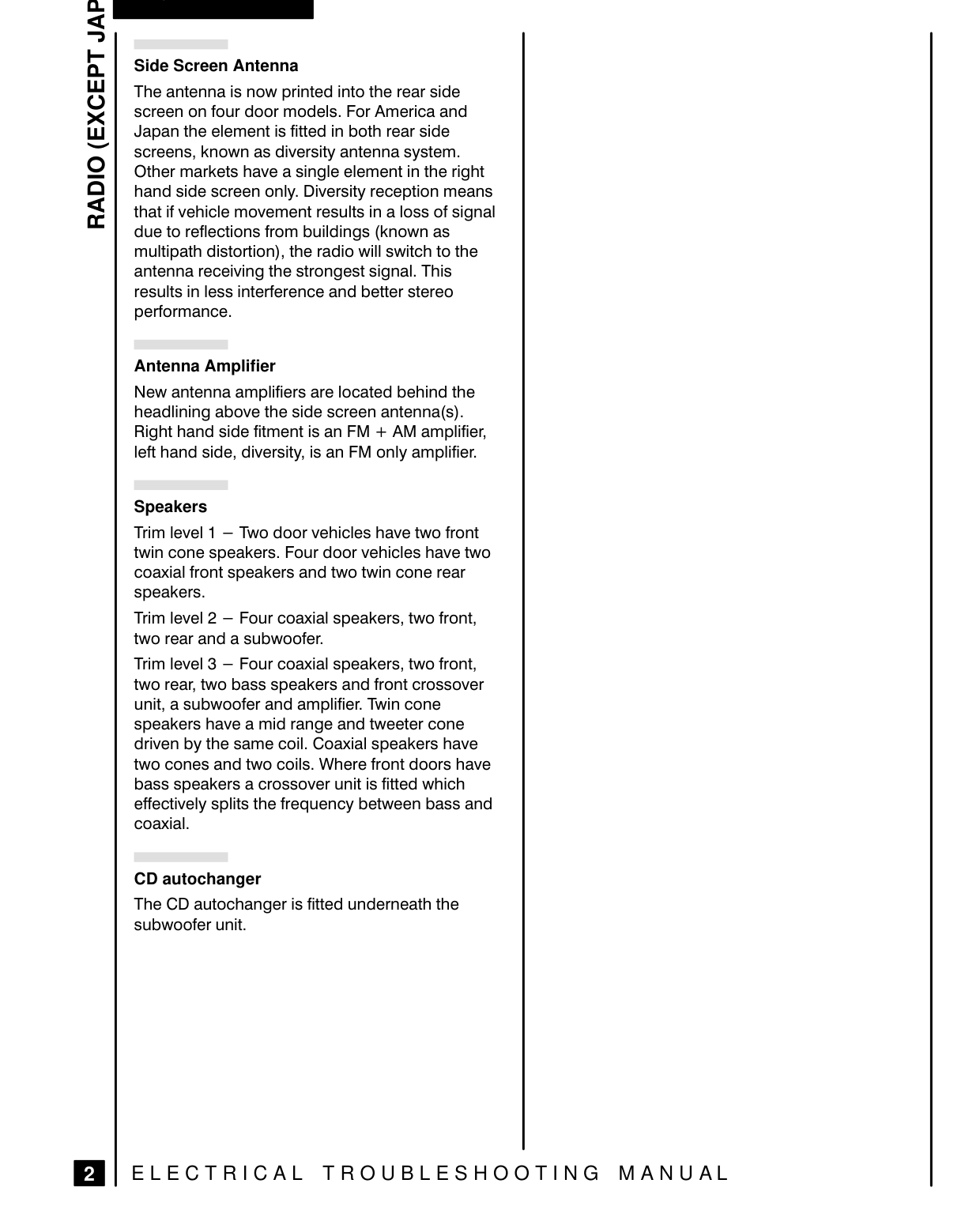

Side Screen Antenna The antenna is now printed into the rear side screen on four door models. For America and Ww | Japan the element is fitted in both rear side screens, known as diversity antenna system. Oo Other markets have a single element in the right OQ | hand side screen only. Diversity reception means that if vehicle movement results in a loss of signal due to reflections from buildings (known as multipath distortion), the radio will switch to the antenna receiving the strongest signal. This results in less interference and better stereo performance.

Antenna Amplifier

New antenna amplifiers are located behind the headlining above the side screen antennas). Right hand side fitment is an FM + AM amplifier, left hand side, diversity, is an FM only amplifier.

Speakers

Trim level 1 — Two door vehicles have two front twin cone speakers. Four door vehicles have two coaxial front speakers and two twin cone rear speakers.

Trim level 2 — Four coaxial speakers, two front, two rear and a subwoofer.

Trim level 3 — Four coaxial speakers, two front, two rear, two bass speakers and front crossover unit, a subwoofer and amplifier. Twin cone speakers have a mid range and tweeter cone driven by the same coil. Coaxial speakers have two cones and two coils. Where front doors have bass speakers a crossover unit is fitted which effectively splits the frequency between bass and coaxial.

CD autochanger The CD autochanger is fitted underneath the subwoofer unit.
