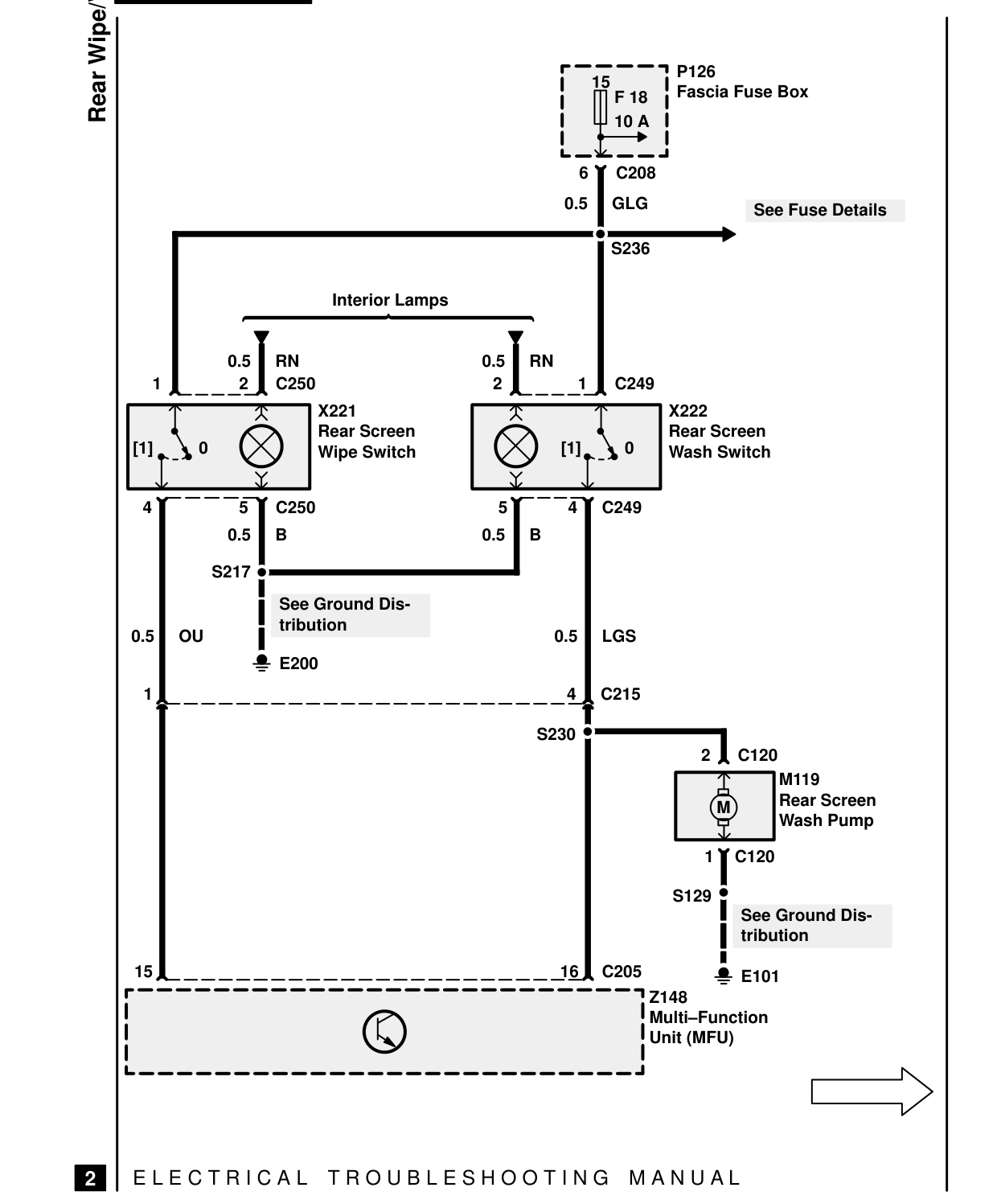

Rear wipe/wash – circuit diagram

REAR WIPE/WASH – CIRCUIT DIAGRAM

Rear Wipe/Wash

Interior Lamps

0.5 RN 1 2 C250 X221 Rear Screen [1] 0 Wipe Switch

4 5 C250 0.5 B

S217 See Ground Dis- tribution 0.5 OU E200 1

15

E L E C T R I C A L T R O U B L E S H O O T I N G

2

P126 15 Fascia Fuse Box F 18 10 A

6 C208 0.5 GLG See Fuse Details

S236

0.5 RN 2 1 C249 X222 Rear Screen [1] 0 Wash Switch

5 4 C249 0.5 B

0.5 LGS

4 C215

S230 2 C120 M119 Rear Screen M Wash Pump

1 C120

S129 See Ground Dis- tribution

16 C205 E101 Z148 Multi-Function Unit (MFU)

M A N U A L
