Rear wipe/wash – fault diagnosis

Make

Land Rover

Model

Range Rover Classic Electrical Troubleshooting Manual

Year

1995

Section

Fault diagnosis › Rear wipe/wash – fault diagnosis

Rear wipe/washRear wipe/wash – fault diagnosis

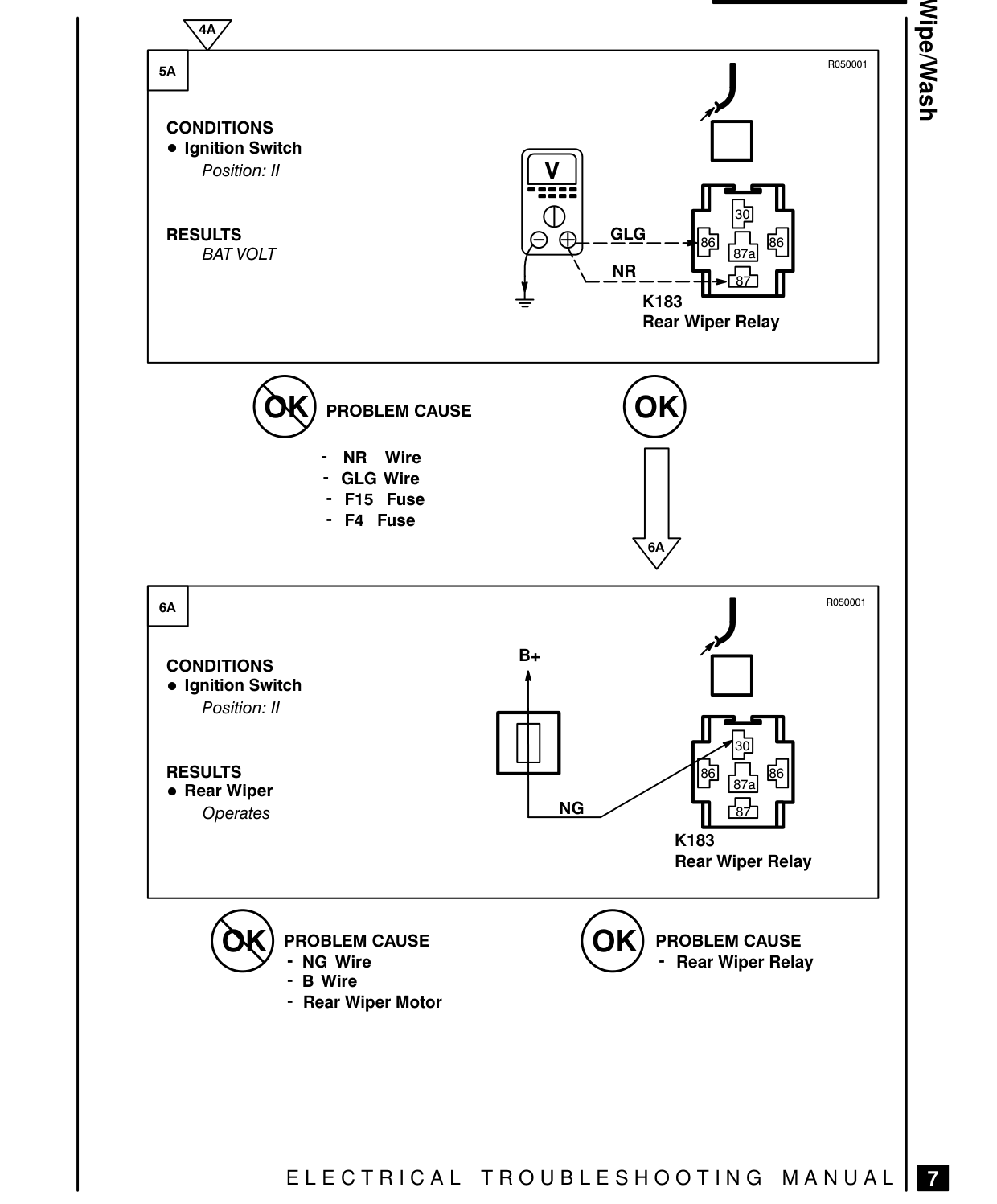

REAR WIPE/WASH – FAULT DIAGNOSIS

CONDITIONS ® Ignition Switch Position: Il

RESULTS BAT VOLT

(5) PROBLEM CAUSE NR Wire GLG Wire F15 Fuse F4 Fuse

CONDITIONS ® Ignition Switch Position: Il RESULTS ® Rear Wiper Operates

PROBLEM CAUSE - NG Wire - B Wire - Rear Wiper Motor

ELECTRICAL

R050001 wn

D _GLG_ _ Bs] er .NR___ _ eal K183 Rear Wiper Relay

R050001

lil oh Bs] Ee ard] Ee NG K183 Rear Wiper Relay

(0K) PROBLEM CAUSE - Rear Wiper Relay

TROUBLESHOOTING MANUAL

16 General
