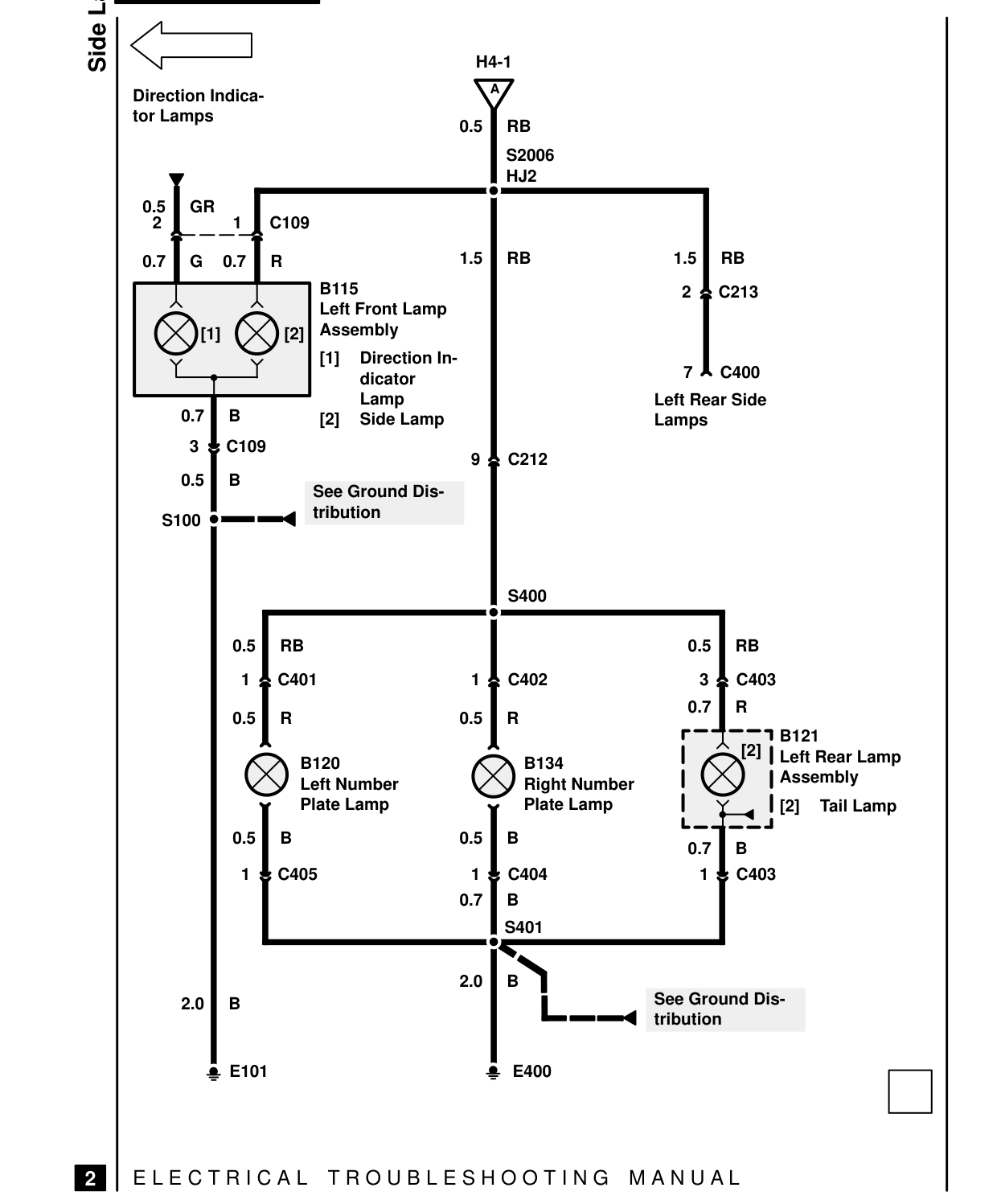

Side lamps – circuit diagram

SIDE LAMPS – CIRCUIT DIAGRAM

Side Lamps Direction Indica- tor Lamps

0.5 GR 2 1 C109

0.7 G 0.7 R B115 Left Front Lamp Assembly [1] [2] [1] Direction In- dicator Lamp 0.7 B [2] Side Lamp 3 C109

0.5 B See Ground Dis- tribution S100

0.5 RB

1 C401

0.5 R

B120 Left Number Plate Lamp

0.5 B

1 C405

2.0 B

E101

E L E C T R I C A L T R O U B L E S H O O T I N G

2

H4-1 A

0.5 RB S2006 HJ2

1.5 RB 1.5 RB

2 C213

7 C400 Left Rear Side Lamps

9 C212

S400

0.5 RB

1 C402 3 C403 0.7 R 0.5 R B121 [2] Left Rear Lamp B134 Assembly Right Number Plate Lamp [2] Tail Lamp 0.5 B 0.7 B 1 C404 1 C403 0.7 B S401

2.0 B See Ground Dis- tribution

E400
