REPAIR
Passenger’s Airbag Module
1. Carry out deployment tool self test.
2. Remove airbag module from fascia.
See
Passenger’s airbag module

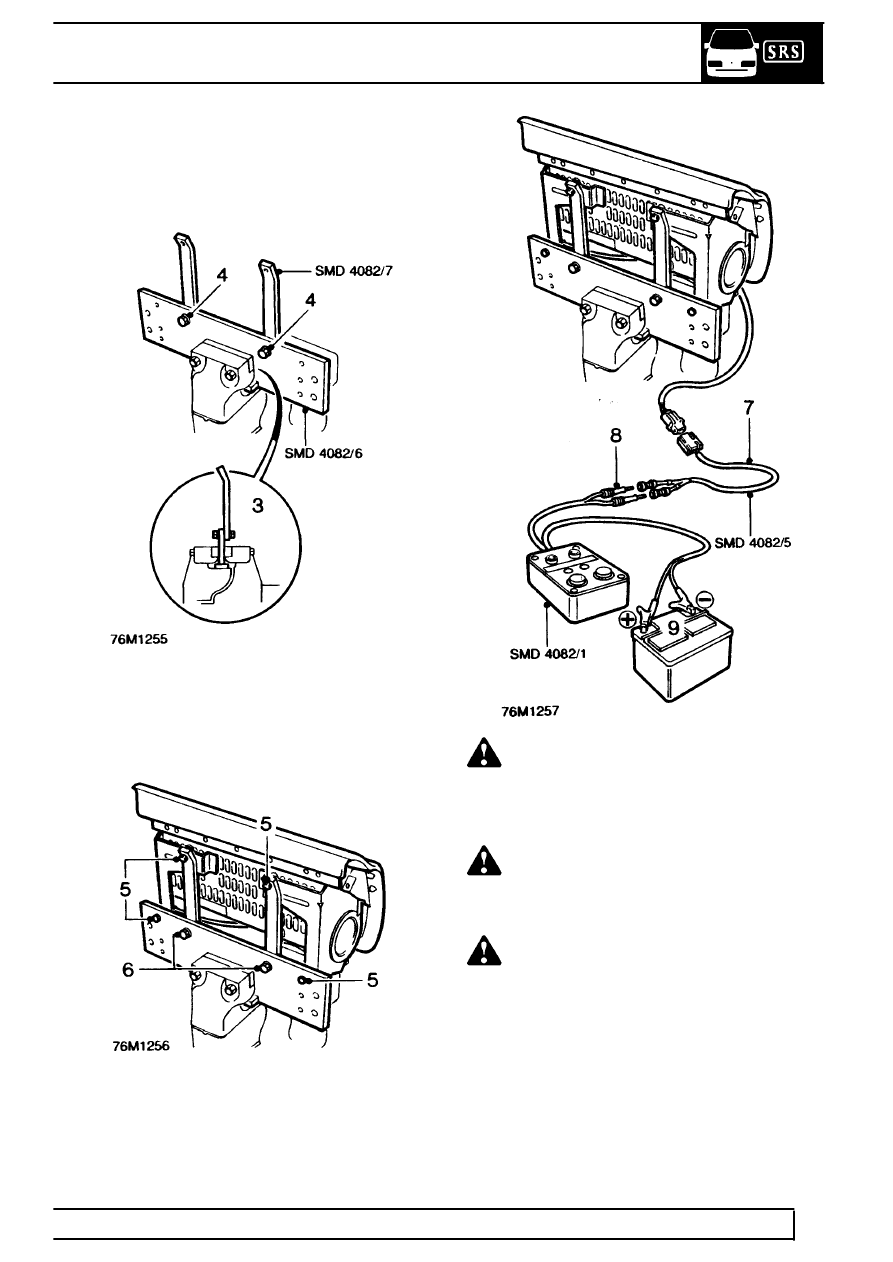

3. Position tool SMD 4082/6 in vice, ensuring that
vice jaws grip tool above bottom flange to
prevent possibility of tool being forced upwards
from vice. Tighten vice.
4. Position brackets SMD 4082/7 to tool; lightly
tighten bolts.
5. Position airbag module to tool SMD 4082/6.
Ensure module is correctly secured using all
fixings.
6. Ensure airbag module mounting brackets are
secure.
WARNING: Ensure tool SMD 4082/1 is not
connected to battery.
7. Connect flylead SMD 4082/5 to airbag module.
8. Connect flylead Smd 4082/5 to tool SMD 4082/1
WARNING: Do not lean over module whilst
connecting.
9. Connect tool SMD 4082/1 to battery.
WARNING: Ensure all personnel are
standing at least 15 metres away from
module.
