Steering column (page 2 of 3)
- Make
- MG
- Model
- MGF Factory Workshop Manual
- Year
- 1995–2000
- Section
- Repairs
SteeringSteering column · page 2 of 3
CAUTION: The steering column, upper mounting bolts must be removed before the lower mounting bolts. This is to prevent the weight of the steering column damaging the upper mounting breakout capsules.

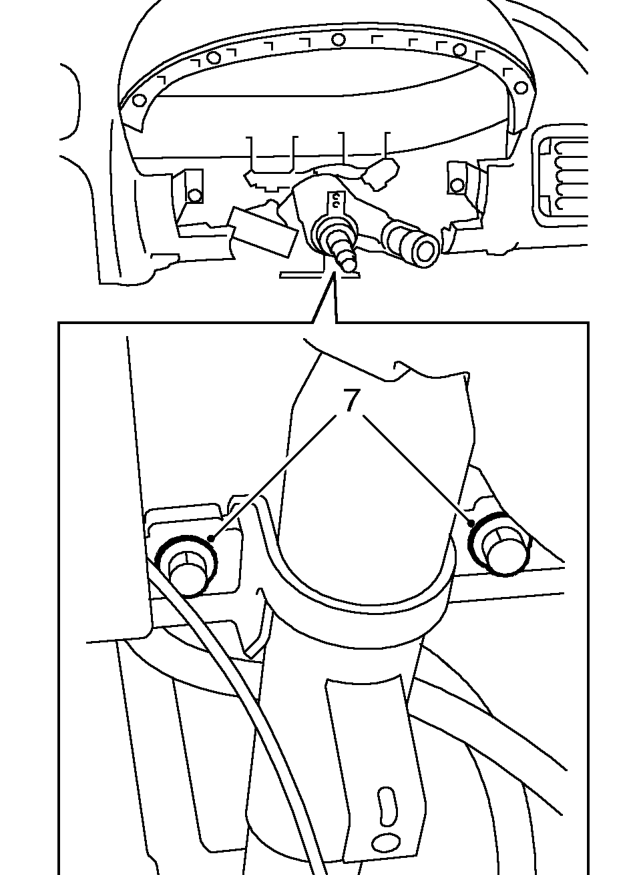

- Remove 2 bolts securing upper steering column to fascia rail.

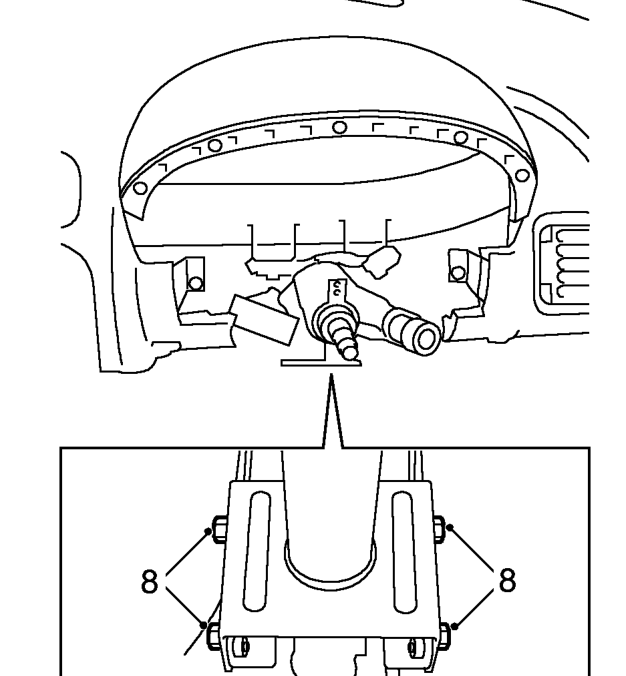

- Remove 4 bolts securing lower steering column to bracket.
- Release column assembly and remove from steering rack pinion, remove steering column from vehicle.
