13 · Steering & suspension

Steering column (page 3 of 3)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
SteeringSteering column · page 3 of 3
Diagram

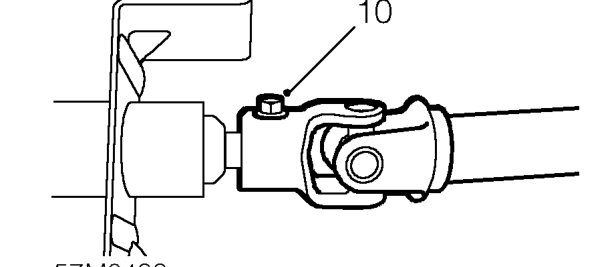

  1. Remove clamping bolt securing steering column to intermediate shaft. Remove intermediate shaft.
  2. Position steering column assembly in vice.
Position steering column assembly in vice.

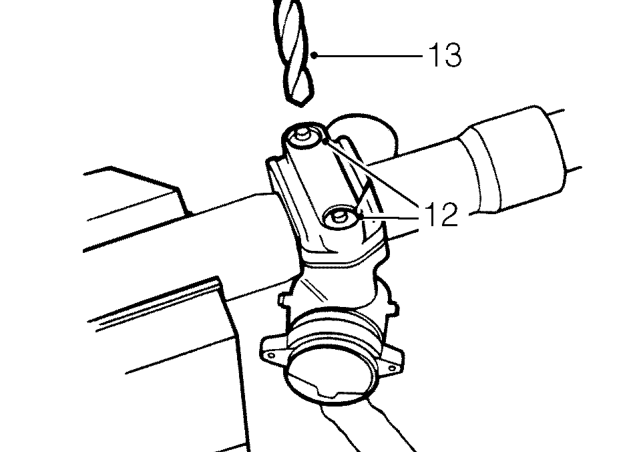

  1. Mark ignition lock shear bolt heads with centre punch.
  2. Drill out shear bolt heads.
Drill out shear bolt heads.

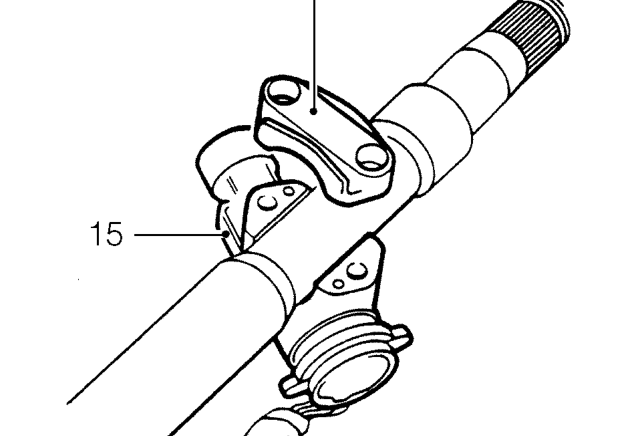

  1. Remove lock ’saddle’ from column.
  2. Remove lock assembly from column.
  3. Remove shear bolts from lock assembly.
