MG TF Factory Workshop Manual (2002-2005)06 · Engine management (MEMS 3), fuel and emission systems
06 · Engine

Fuel tank (page 2 of 3)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs
Engine management (MEMS 3), fuel and emission systemsFuel tank · page 2 of 3
Diagram

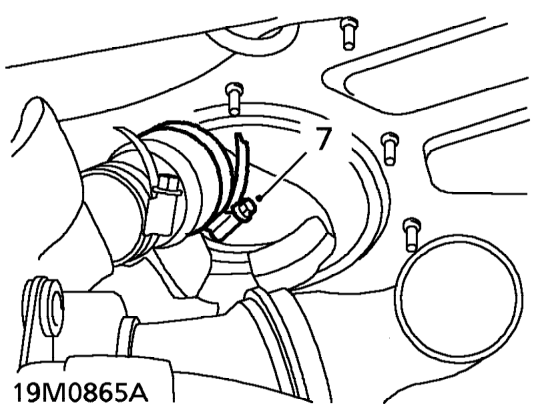

  1. Release clip securing filler hose to fuel tank and position hose aside.
  2. Remove front console. See BODY, Interior trim components.
  3. Lower hood.
Lower hood.

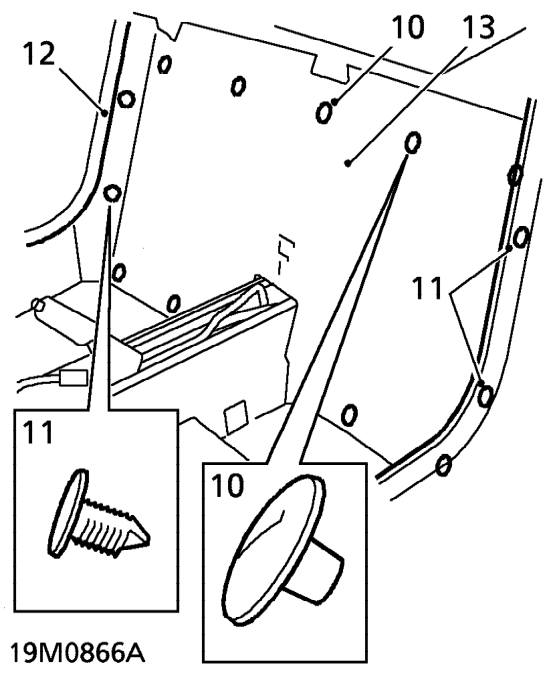

  1. Remove 9 retaining studs securing carpet to rear bulkhead.
  2. Remove 4 clips securing carpet to ’B’ post.
  3. Release carpet from door seals and velcro strips.
  4. Remove carpet.
Remove carpet.

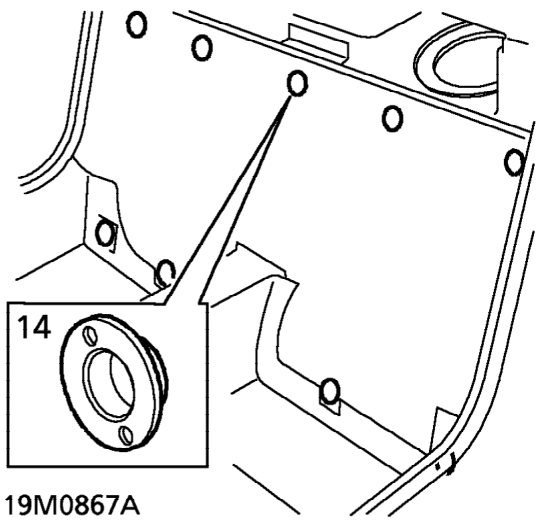

  1. Remove 9 retaining studs securing felt pad to rear bulkhead and remove pad.
Remove 9 retaining studs securing felt pad to rear bulkhead and remove pad.

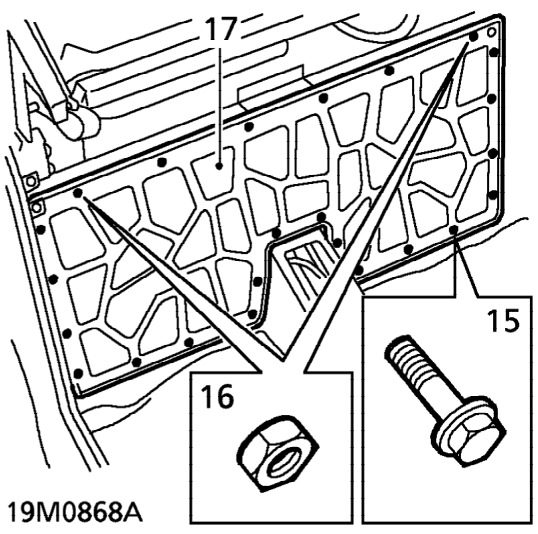

  1. Remove 22 bolts securing closing panel to rear bulkhead.
  2. Remove 2 nuts securing closing panel to rear bulkhead.
  3. Remove closing panel.
