MG TF Factory Workshop Manual (2002-2005)14 · Front suspension
14 · Steering & suspension

Suspension arm assembly - upper (page 2 of 3)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs
Front suspensionSuspension arm assembly - upper · page 2 of 3
Diagram

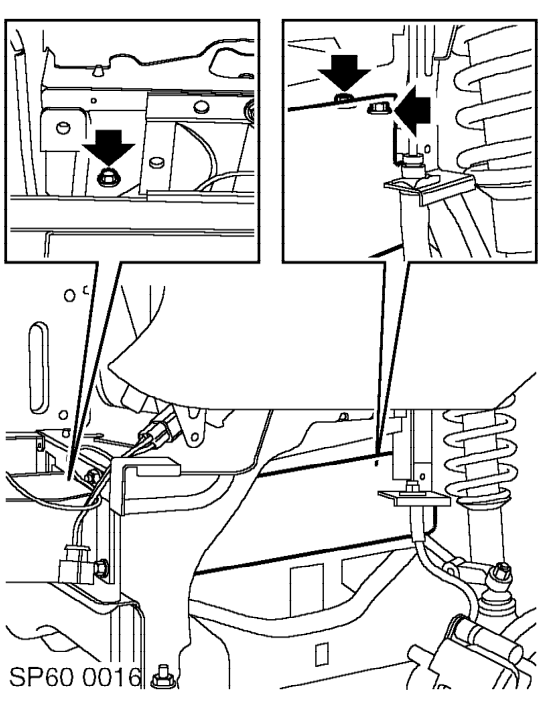

  1. Remove 3 bolts securing crash can to subframe and remove crash can.
Remove 3 bolts securing crash can to subframe and remove crash can.

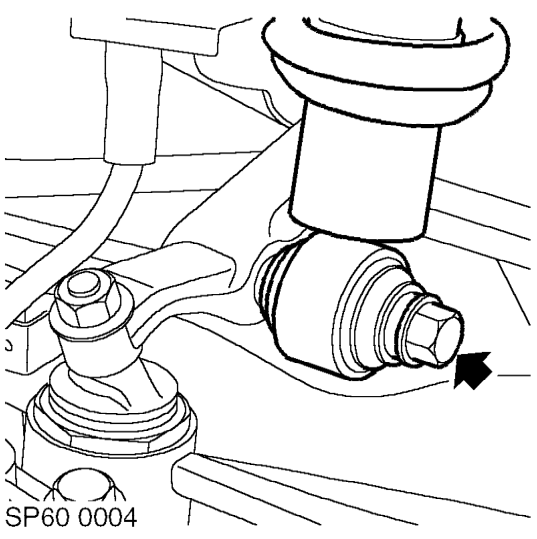

  1. Remove bolt securing damper assembly to upper suspension arm, move damper aside.
Remove bolt securing damper assembly to upper suspension arm, move damper aside.

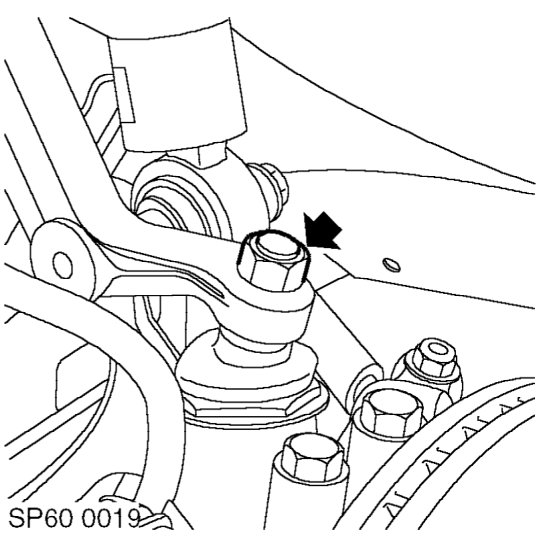

  1. Remove and discard nut securing upper ball joint and remove nut.
Remove and discard nut securing upper ball joint and remove nut.

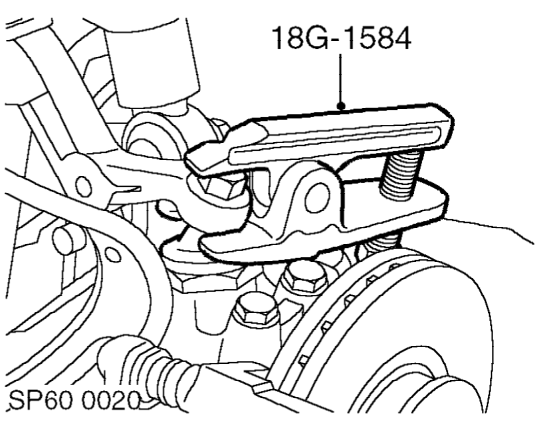

  1. Fit slave nut to ball joint threads, position 18G-1584 and release ball joint taper from upper suspension arm. Remove 18G-1584 and slave nut.
