MG TF Factory Workshop Manual (2002-2005)15 · Rear suspension
15 · Steering & suspension

Bearing(s) - hub - one side (page 2 of 3)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs
Rear suspensionBearing(s) - hub - one side · page 2 of 3
Diagram

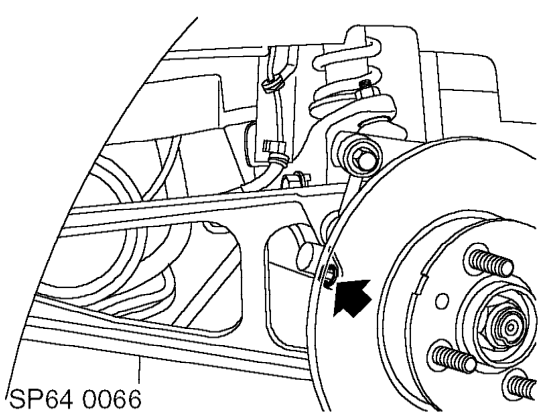

  1. Remove bolt securing ABS sensor to hub, release sensor and position aside.
Remove bolt securing ABS sensor to hub, release sensor and position aside.

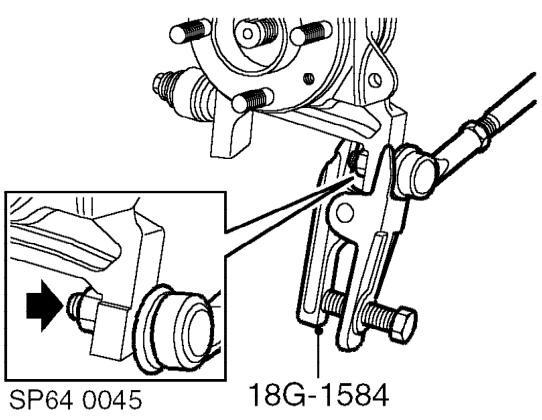

  1. Remove nut securing track control arm to rear hub.
  2. Using tool 18G-1584 , release track control arm ball joint from rear hub.
Using tool 18G-1584 , release track control arm ball joint from rear hub.

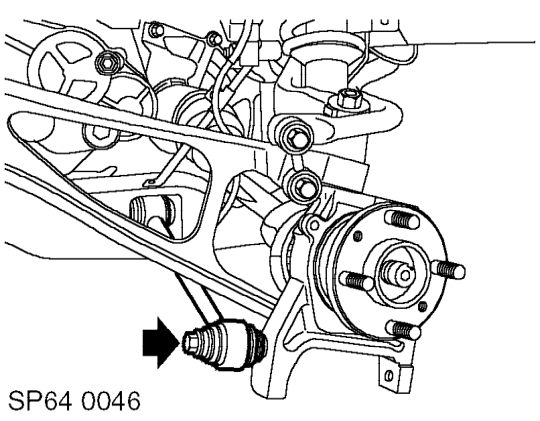

  1. Remove bolt securing lower link to rear hub.
Remove bolt securing lower link to rear hub.

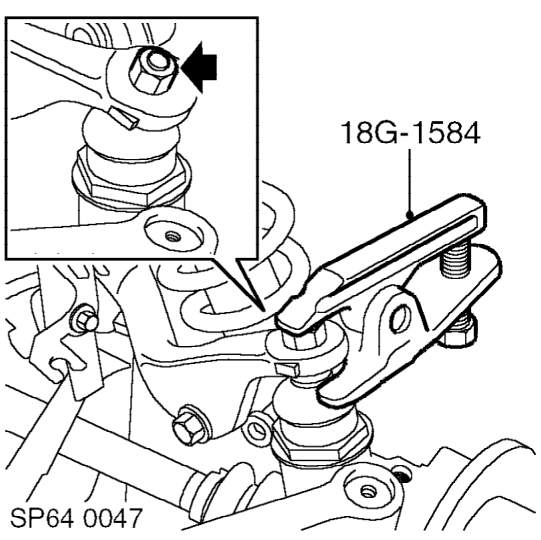

  1. Remove and discard lock nut from upper arm ball joint.
  2. Fit slave nut to ball joint threads, position 18G-1584 and release ball joint taper from upper suspension arm. Remove 18G-1584 and slave nut.
Fit slave nut to ball joint threads, position 18G-1584 and release ball joint taper from u

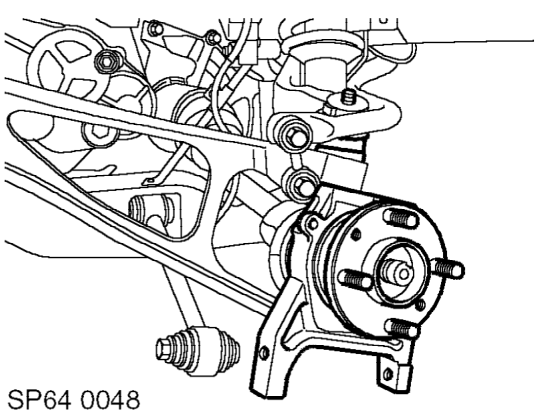

  1. Remove rear hub assembly from drive shaft.
  2. Position hub to press.
