MG TF Factory Workshop Manual (2002-2005)15 · Rear suspension
15 · Steering & suspension

Bearing(s) - hub - one side (page 3 of 3)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs
Rear suspensionBearing(s) - hub - one side · page 3 of 3
Diagram

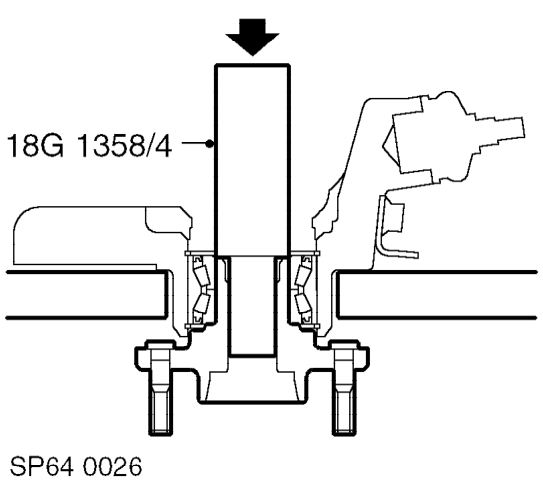

  1. Press out drive flange using tool 18G 1358/4 .
  2. Collect drive flange.
  3. Remove hub from press.
Remove hub from press.

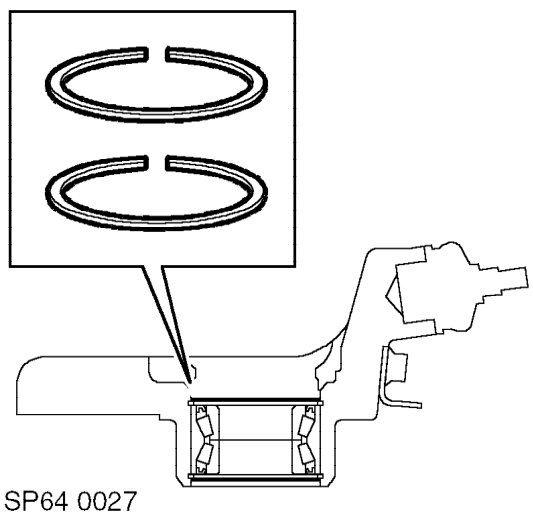

  1. Remove bearing outer circlip.
  2. Remove bearing inner circlip.
  3. Position hub to press.
Position hub to press.

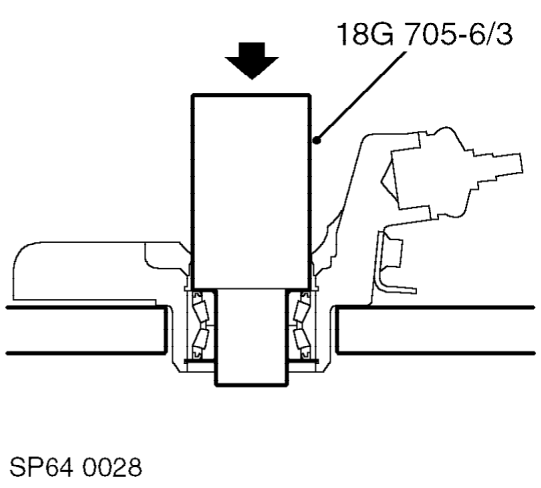

  1. Fit tool 18G 705-6/3 to bearing and press out bearing.
  2. Remove hub from press.
  3. Position drive flange to press.
Position drive flange to press.

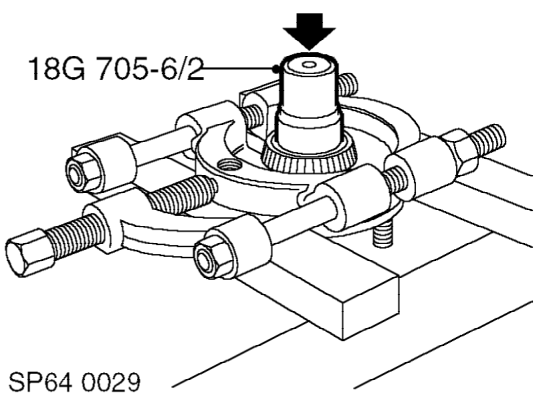

  1. Fit a universal bearing splitter to bearing as shown.
Fit a universal bearing splitter to bearing as shown.

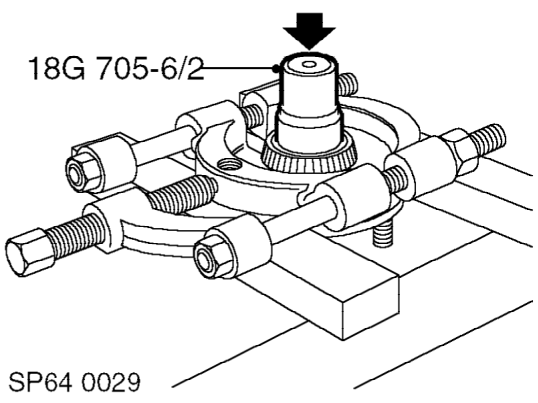

  1. Fit thrust button, tool 18G 705-6/2 to drive flange and press out drive flange from inner track.
  2. Collect drive flange and remove bearing inner track.
