BRAKE PEDAL

Service repair no - 70.35.01

Remove

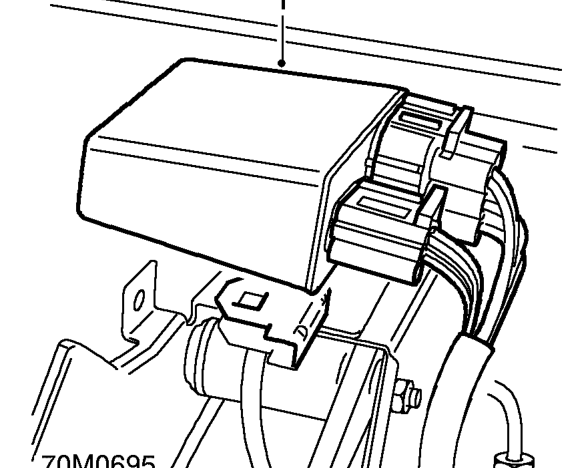

Brake pedal – Service repair no - 70.35.01
  1. Release engine management relay module from mounting bracket.
  2. Remove and discard split pin from clevis pin.

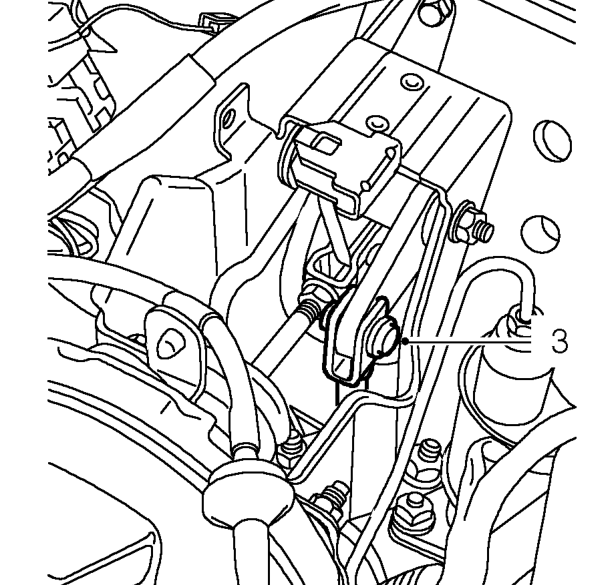

Brake pedal – Remove and discard split pin from clevis pin.
  1. Remove clevis pin securing brake pedal push rod to fulcrum
  2. Remove heater air intake hose.
  3. Disconnect demister tubes from heater.

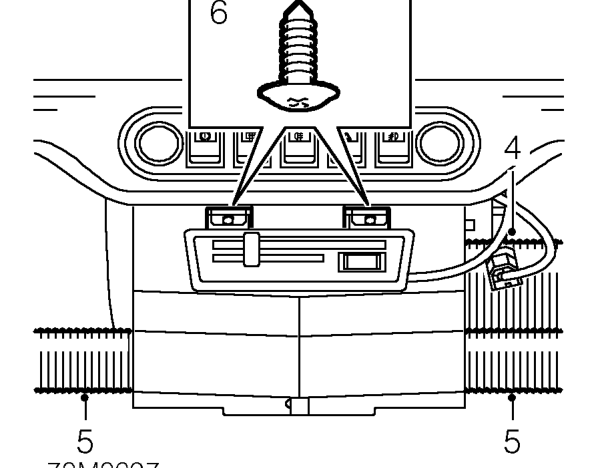

Brake pedal – Disconnect demister tubes from heater.
  1. Remove 2 screws securing heater to lower fascia rail.

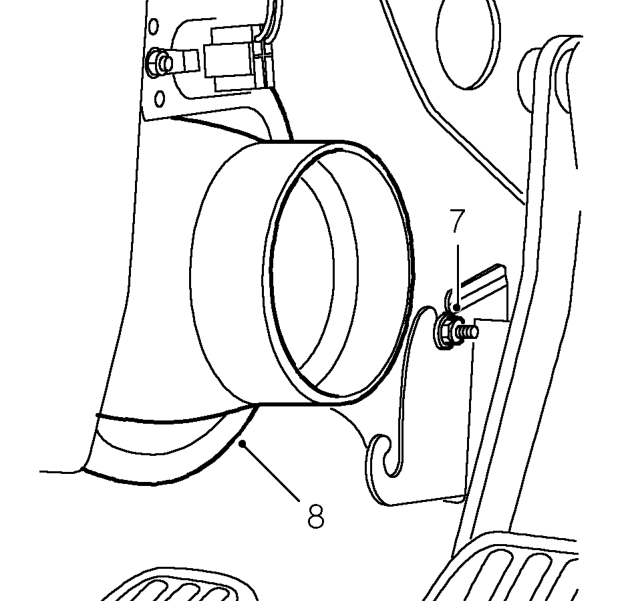

Brake pedal – Remove 2 screws securing heater to lower fascia rail.
  1. Loosen nut securing rear of heater to bulkhead.
  2. Release heater and move aside.
