Rear wheel brake cylinder

REAR WHEEL BRAKE CYLINDER

Service repair no - 70.60.19

Remove

1. Remove rear brake shoes. See this section.

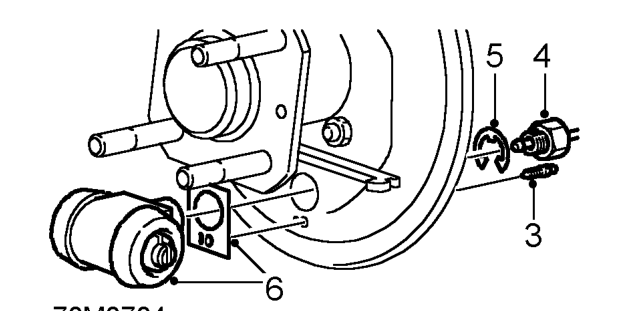

2. Clamp rear brake hose to prevent fluid loss.

CAUTION: A brake hose clamp must be used.

3. Remove bleed nipple.
4. Loosen union and disconnect brake pipe from wheel cylinder.

CAUTION: Plug the connections.

5. Remove ’C’ clip securing wheel cylinder to back plate.
6. Remove wheel cylinder and discard gasket.

Refit

1. Clean mating faces of cylinder and backplate.
2. Remove plugs from new cylinder and fit to old cylinder.
3. Using a new gasket position wheel cylinder to back plate and secure with clip.
4. Remove plug from brake pipe and clean brake pipe union.
5. Connect brake pipe to wheel cylinder and tighten union to 14 Nm.
6. Ensure bleed nipple is clean and hole is clear.
7. Fit bleed nipple and tighten 9 Nm.
8. Remove brake hose clamp.
9. Fit rear brake shoes. See this section.
10. Bleed brakes. See Adjustments.

HANDBRAKE CABLE - FRONT

Service repair no - 70.35.14.

Remove

1. Remove drivers front seat. See BODY, Seats and seat belts.

2. Remove Torx screw securing seat belt stalk to body and remove stalk.
