15 · Brakes

Rear wheel brake cylinder (page 2 of 3)

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs
BrakesRear wheel brake cylinder · page 2 of 3

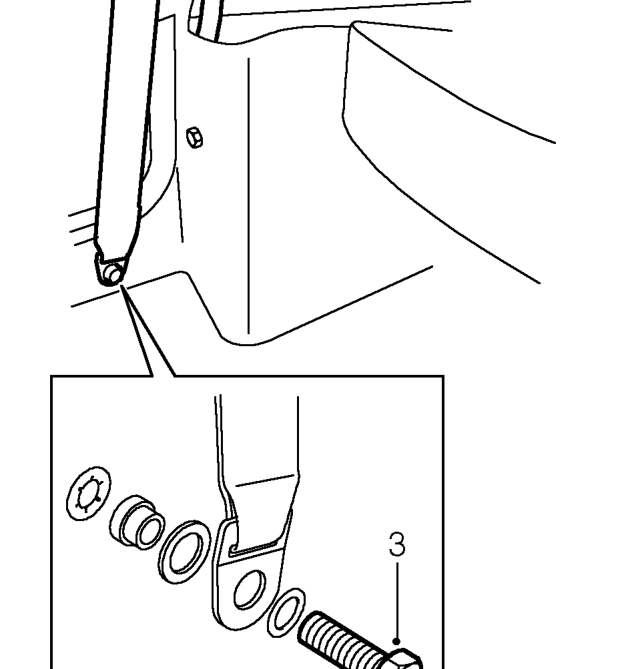

Diagram
  1. Remove seat belt lower mounting bolt and collect spacer and washers.
  2. Release carpet from door seal and clips on bulkhead.
  3. Fold back carpet to access handbrake lever.

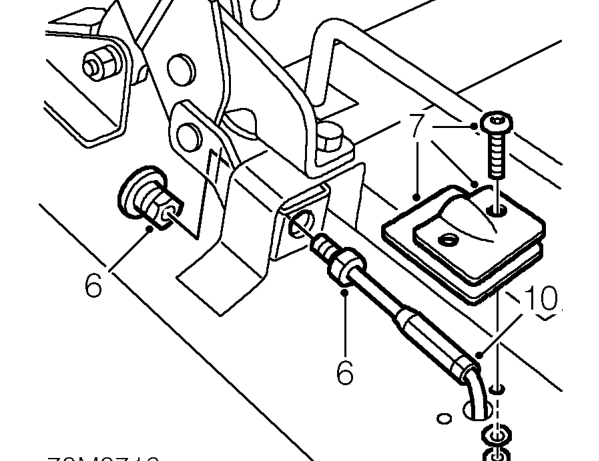

Fold back carpet to access handbrake lever.
  1. Loosen locknut, unscrew cable adjusting nut and release cable from handbrake lever.
  2. Remove 2 screws securing cable guide plate to body, remove guide plate and seal.
  3. Remove locknut from cable.
  4. Remove intermediate pipe heat shield. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  5. Withdraw cable through floor.

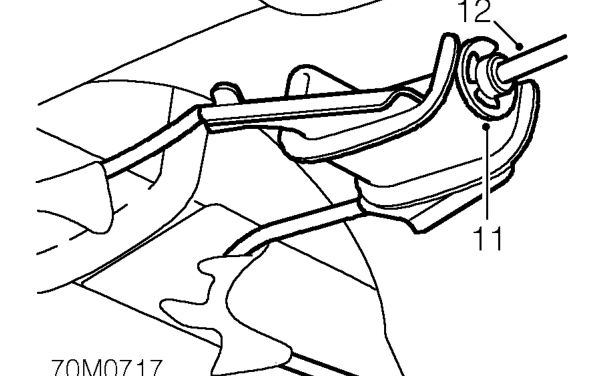

Withdraw cable through floor.
  1. Remove clip retaining cable to compensator.
  2. Disconnect cable from compensator and remove handbrake cable.
