PRESSURE REDUCING VALVE

Service repair no - 70.25.21

Remove

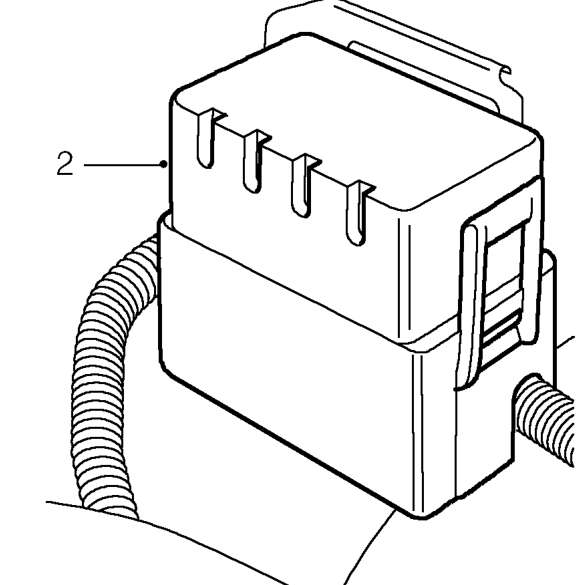

  1. Remove ECM. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
Pressure reducing valve – Remove ECM. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

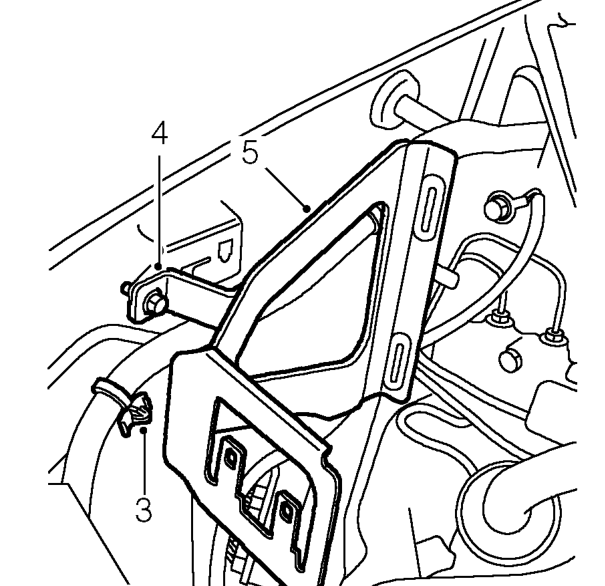

  1. Release engine compartment fuse box from ECM mounting bracket.
Pressure reducing valve – Release engine compartment fuse box from ECM mounting bracket.
  1. Release clip securing main harness to ECM mounting bracket.
  2. Remove bolt securing ECM mounting bracket to body.
  3. Release ECM mounting bracket from body and remove.
  4. Position cloth beneath valve to absorb spilled fluid.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.
