SERVO ASSEMBLY

Service repair no - 70.50.01

Remove

  1. Remove master cylinder. See this section.
Servo assembly – Remove master cylinder. See this section.

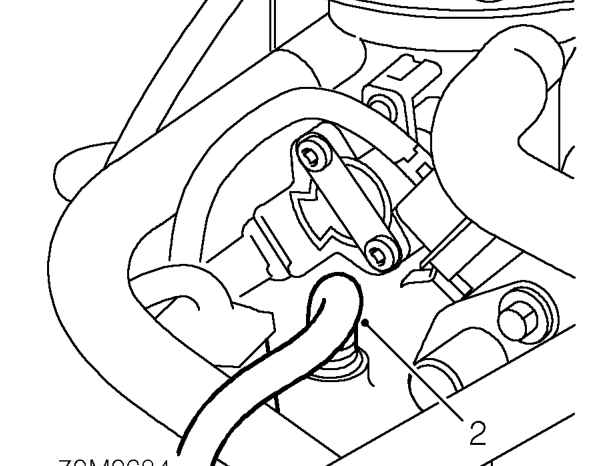

  1. Depress plastic collar on quick release connector and disconnect servo vacuum hose from inlet manifold.
Servo assembly – Depress plastic collar on quick release connector and disconnect servo vacuum hose from in

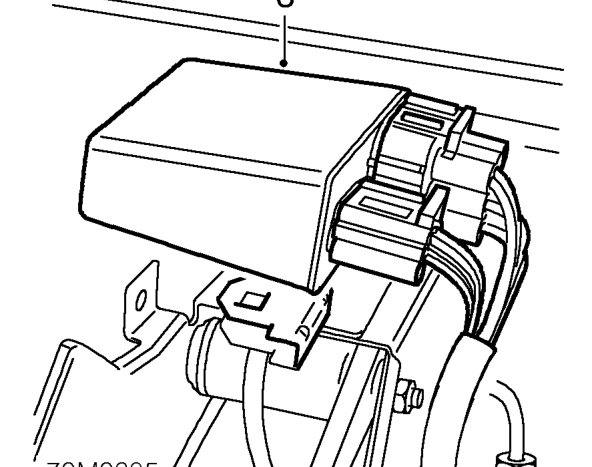

  1. Release engine management relay module from mounting bracket.

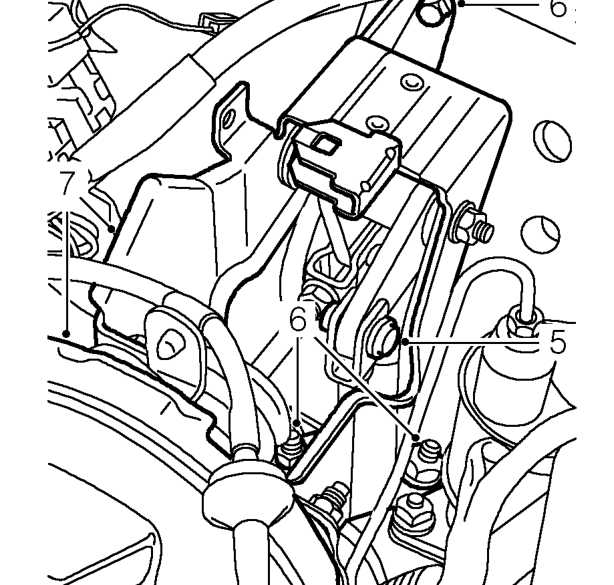

  2. Remove and discard split pin from clevis pin.
Servo assembly – Remove and discard split pin from clevis pin.
  1. Remove clevis pin securing brake pedal push rod to fulcrum.
  2. Remove bolt and 2 nuts securing servo mounting bracket to body and collect washers.
  3. Release and remove servo and mounting bracket assembly.
