Brake pedal (page 2 of 2)

Make

Mini

Model

Mini Workshop Manual

Year

1996–2000

Section

Repairs

BrakesBrake pedal · page 2 of 2

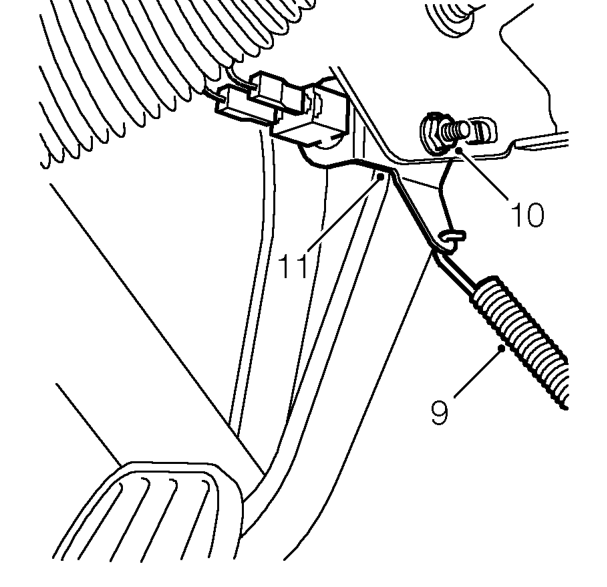

9. Release throttle pedal return spring from bracket.
10. Remove nut and washer securing brake light switch mounting bracket to pedal box.
11. Release brake light switch mounting bracket from pedal box.

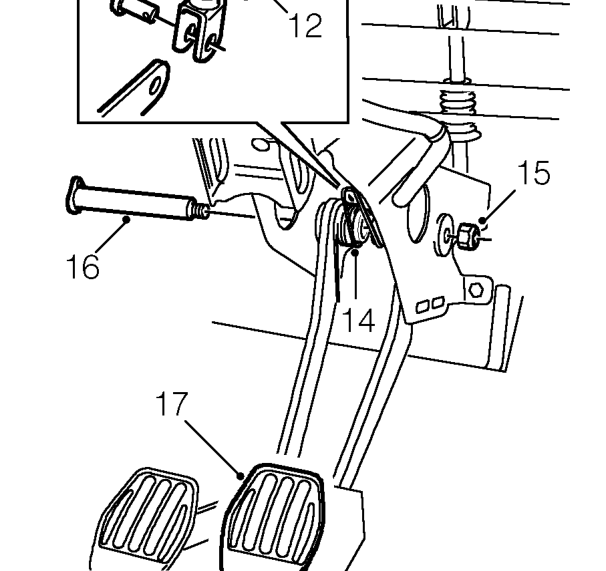

12. Remove and discard split pin from clevis pin.
13. Remove clevis pin securing master cylinder push rod to clutch pedal.
14. Release return spring from clutch pedal.
15. Remove nut securing pedal pivot bolt to pedal box.
16. Withdraw pivot bolt from pedal box and remove pedals and return spring.
17. Remove rubber from pedal.

15 Brakes
