Engine LH mounting

ENGINE LH MOUNTING

Service repair no - 12.45.11.

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. Disconnect battery earth lead.

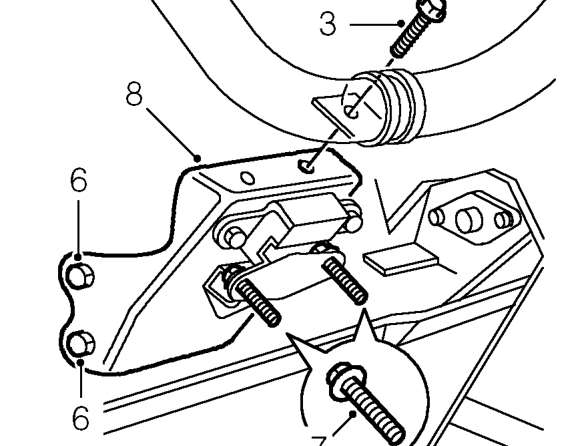

3. Remove bolt securing radiator bottom hose to engine mounting.
4. Position jack to support engine.

CAUTION: Use a block of wood or hard rubber pad between jack and engine.

5. Take weight off engine mounting.
6. Remove 2 bolts securing engine mounting bracket to gearbox.
7. Remove 2 bolts securing engine mounting to subframe.

8. Remove engine mounting and bracket.

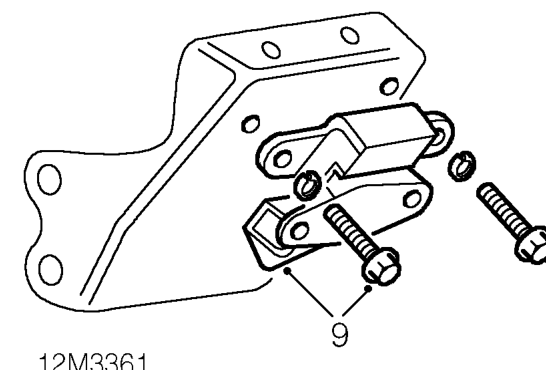

9. Position bracket in a vice, remove 2 bolts securing mounting to bracket and remove mounting.

Refit

1. Position mounting to bracket, fit bolts and tighten to 22 Nm.
2. Remove bracket from vice, fit mounting to subframe and tighten bolts to 22 Nm.
3. Lower engine and align to mounting bracket fit and tighten bolts to 25 Nm.
4. Remove jack
5. Fit bolt securing radiator bottom hose to engine mounting.
6. Remove stand(s) and lower vehicle.
7. Connect battery earth lead.
