ENGINE AND GEARBOX

Service repair no - 12.37.01/99

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Drain engine oil. See MAINTENANCEMaintenance.
  2. Fit new sealing washer to drain plug.
  3. Fit drain plug and tighten to 34 Nm.
  4. Remove bonnet. See BODY, Exterior fittings.
  5. Remove radiator. See COOLING SYSTEM, Repairs.
  6. Remove engine steady bar - upper. See this section.
  7. Remove ECM. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  8. Remove servo and mounting bracket assembly. See BRAKES, Repairs.
  9. Remove starter motor. See ELECTRICAL, Repairs.
  10. Remove horn. See ELECTRICAL, Repairs.

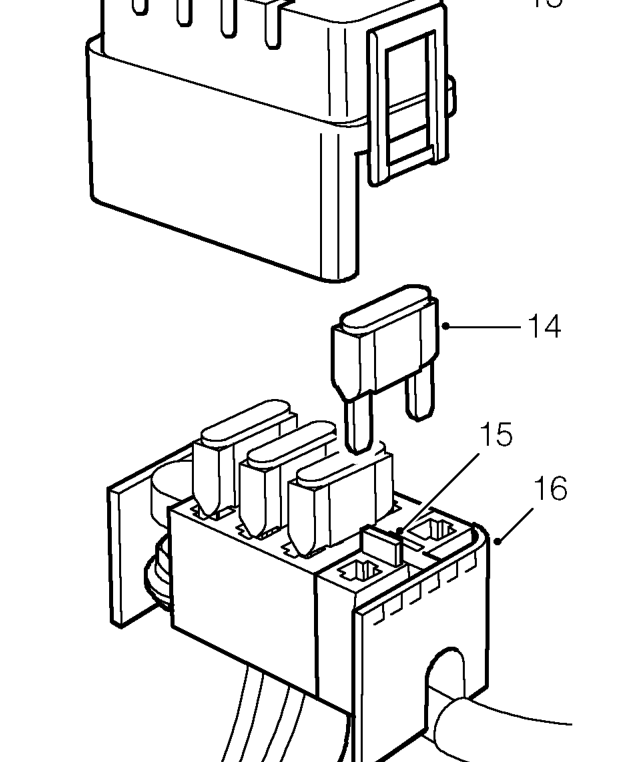

Engine and gearbox – Remove horn. See ELECTRICAL, Repairs.
  1. Remove cover from engine compartment fuse box.
  2. Remove fusible link.
  3. Release retaining tag and disconnect engine harness lead from fuse box.
  4. Release engine compartment fuse box from ECM mounting bracket.
