Mini Mini Workshop Manual (1996-2000)04 · Engine
04 · Engine

Engine and gearbox (page 6 of 9)

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs
EngineEngine and gearbox · page 6 of 9
Diagram

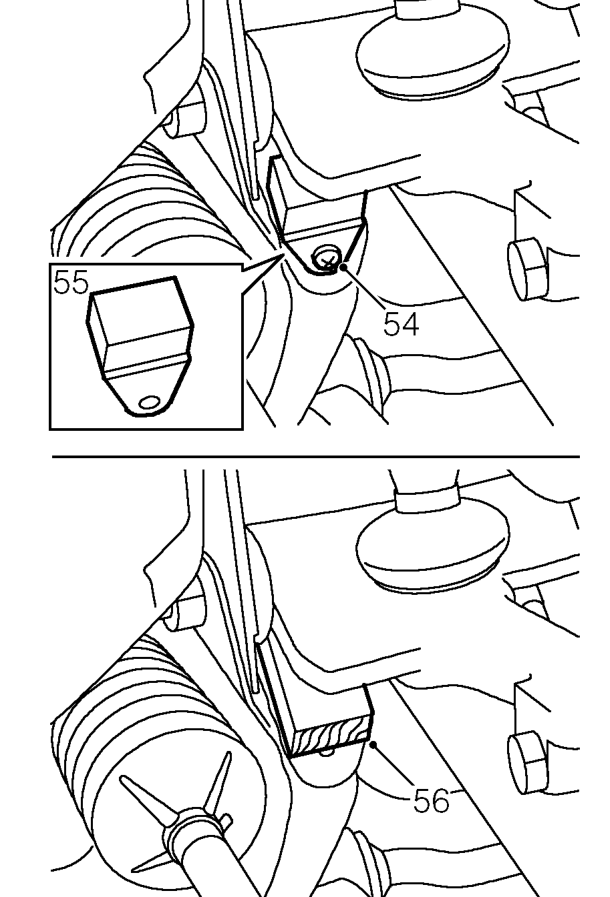

  1. Remove screw securing rebound rubber to subframe.
  2. Remove rebound rubber.
  3. Fit a wedge between suspension arm and subframe, lower suspension onto wedge and remove jack.

CAUTION: Ensure that an appropriate wedge is used to prevent any damage occuring to the suspension components.

Fit a wedge between suspension arm and subframe, lower suspension onto wedge and remove ja

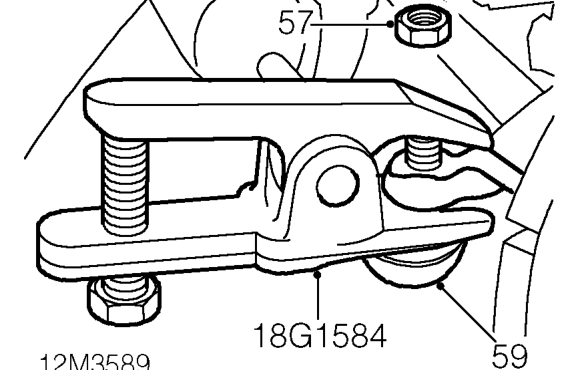

  1. Remove nut securing steering rack track rod end to front hub.
  2. Break taper joint using tool 18G 1584.
  3. Disconnect track rod end from front hub.
Disconnect track rod end from front hub.

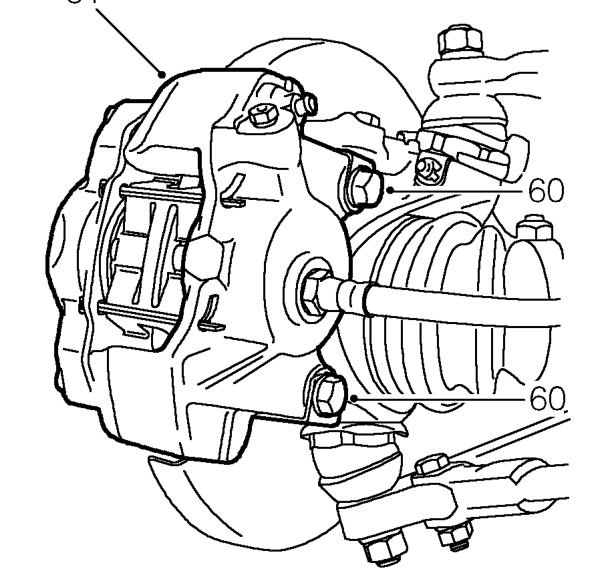

  1. Remove 2 bolts and collect washers securing brake caliper to front hub.
  2. Release brake caliper from front hub and position aside.

CAUTION: Do not allow caliper to hang on brake hose.
